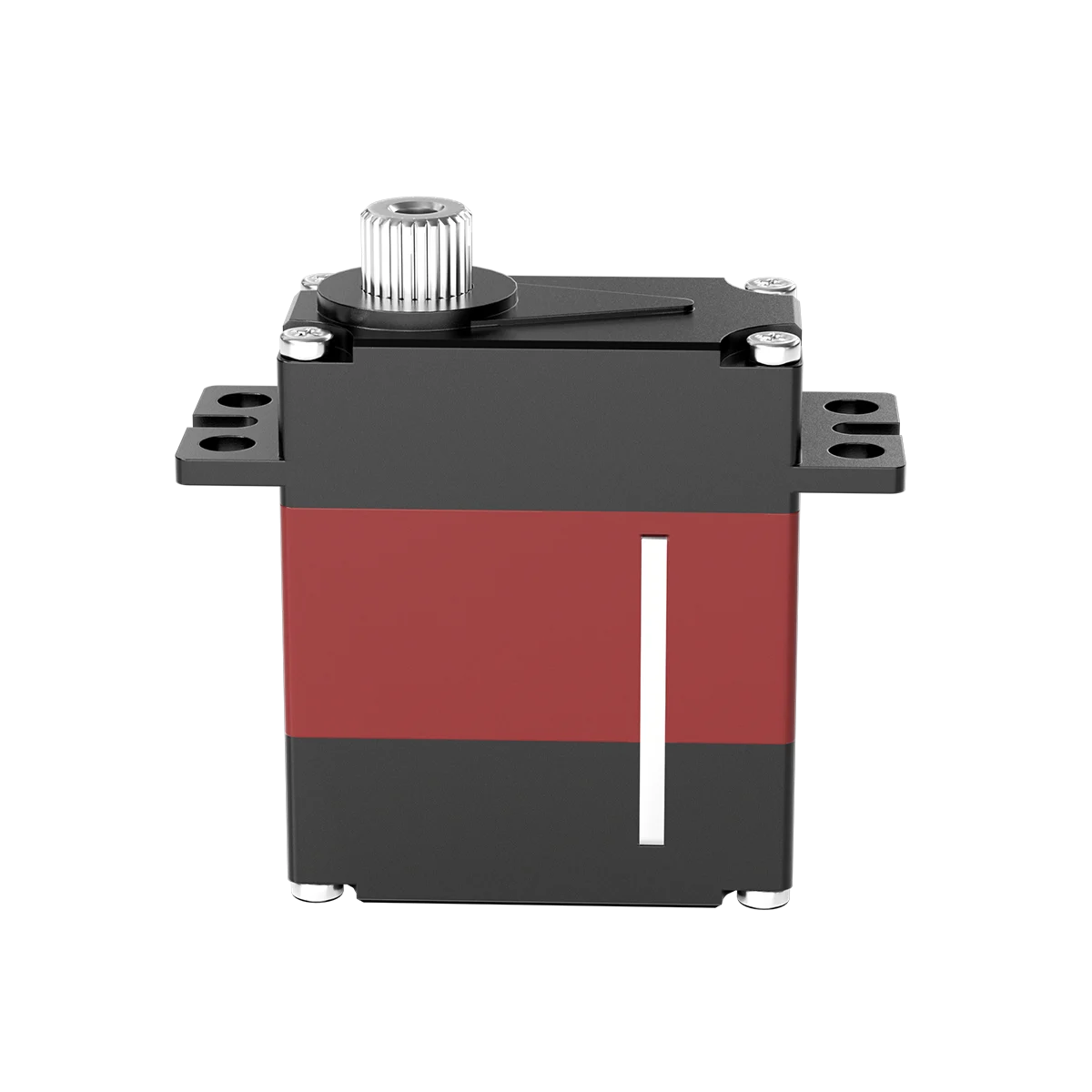

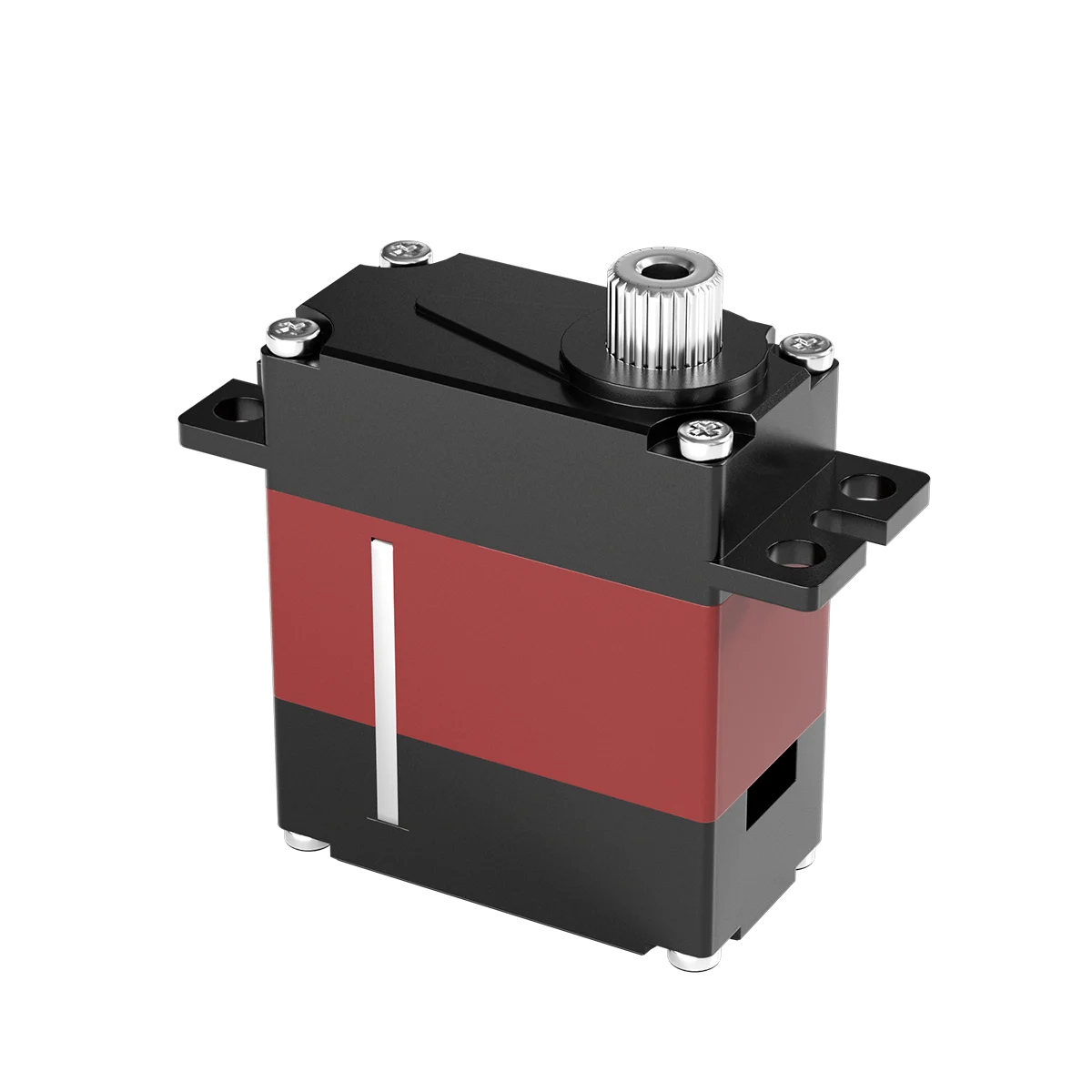

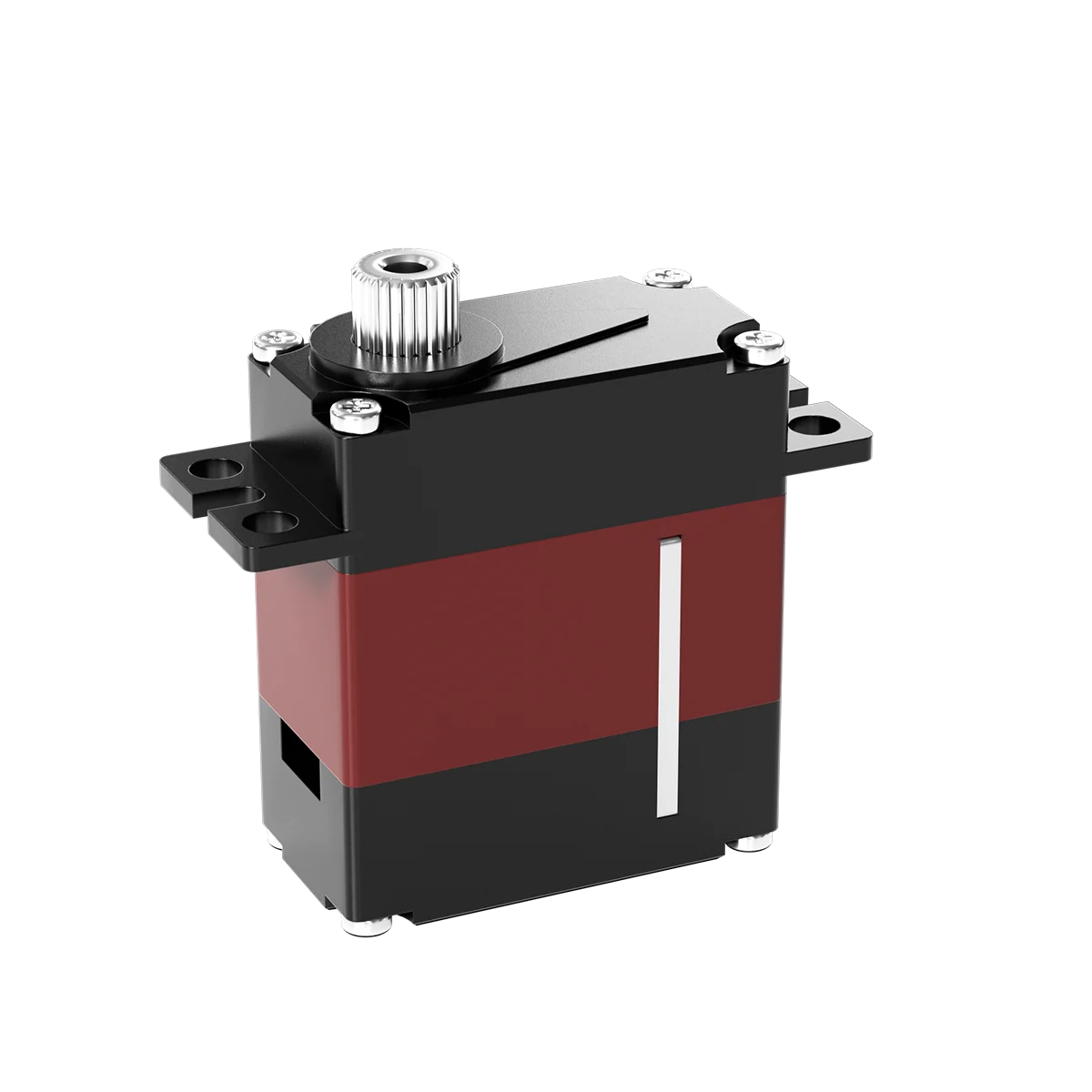

R-A08 Small universal Digital Servo
R-A08 is a digital servo motor with a coreless motor, all-metal gears and a lightweight 22g design. Supporting 6V, 7.4V and 8.4V operation, it delivers up to 8 kgf·cm torque with a response speed as fast as 0.07 sec/60°, making it ideal for compact robotic and motion control applications.
- Up to 8 kgf·cm Torque
- Compatible with 6V / 7.4V / 8.4V operating conditions.
- Durable full-metal gear train
Parameter
| R-A08 | |||
| Operating Voltage | 6V | 7.4V | 8.4V |
| No-load Speed (±10%) | 0.09sec/60° | 0.08sec/60° | 0.07sec/60° |
| Stall Torque (±10%) | 5kgf·cm | 6kgf·cm | 8kgf·cm |
| Centering Error | ≤ ±1° | ||
| Motor Type | Coreless Motor | ||
| Gear Material | Full Metal | ||
| Housing Material | Aluminum Alloy | ||
| Dimension | 23*12*27.5mm | ||
| Weight | 22g (±10%) | ||
