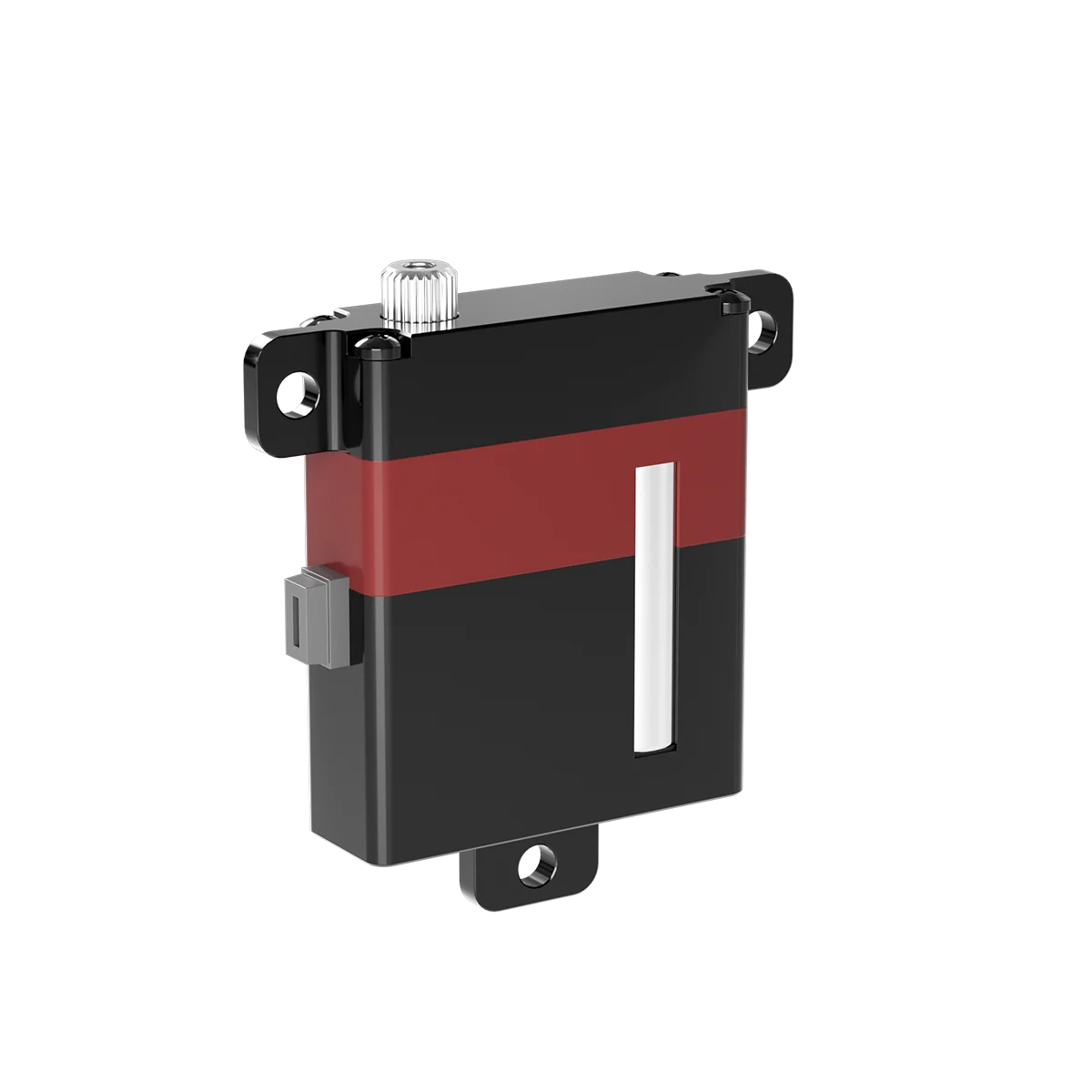

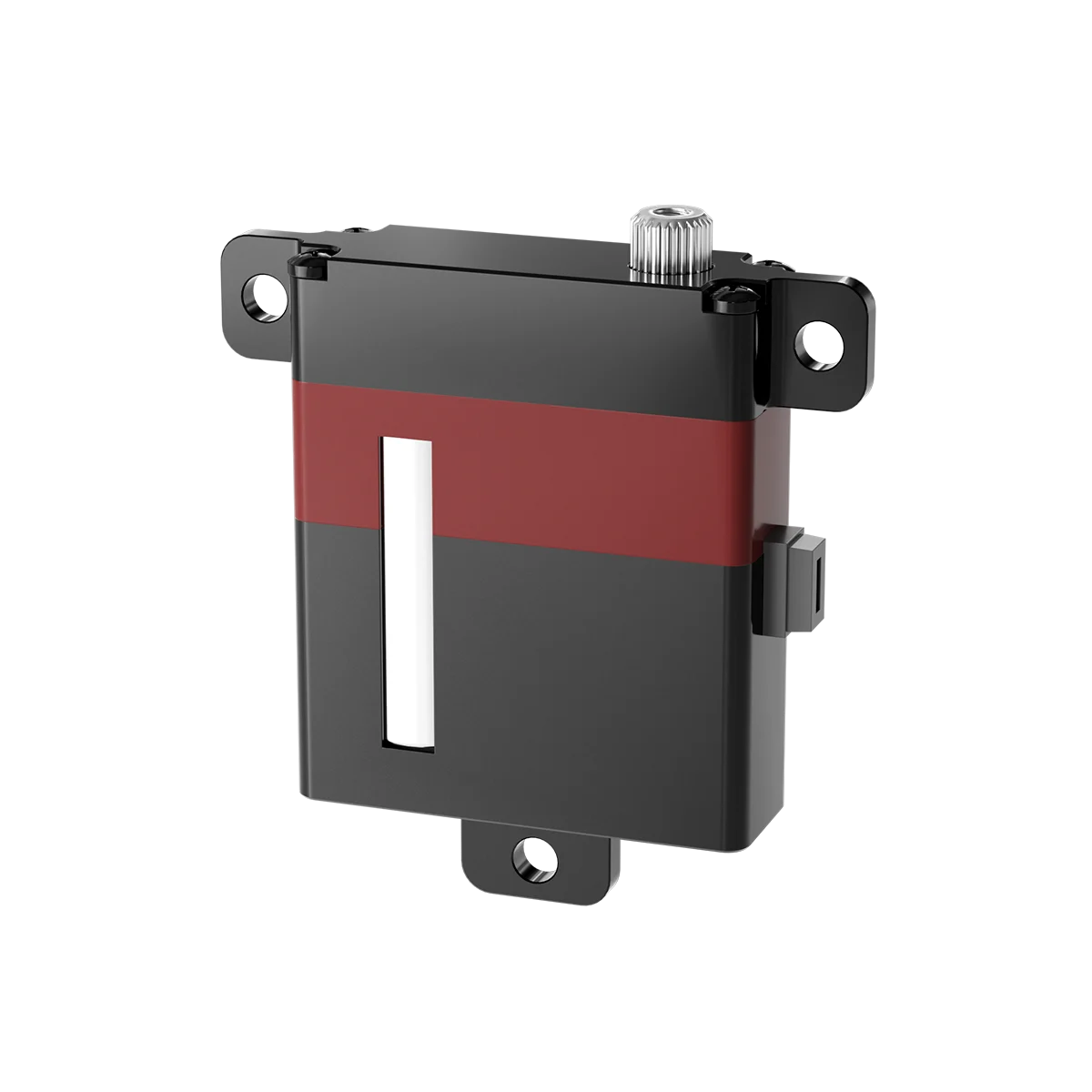

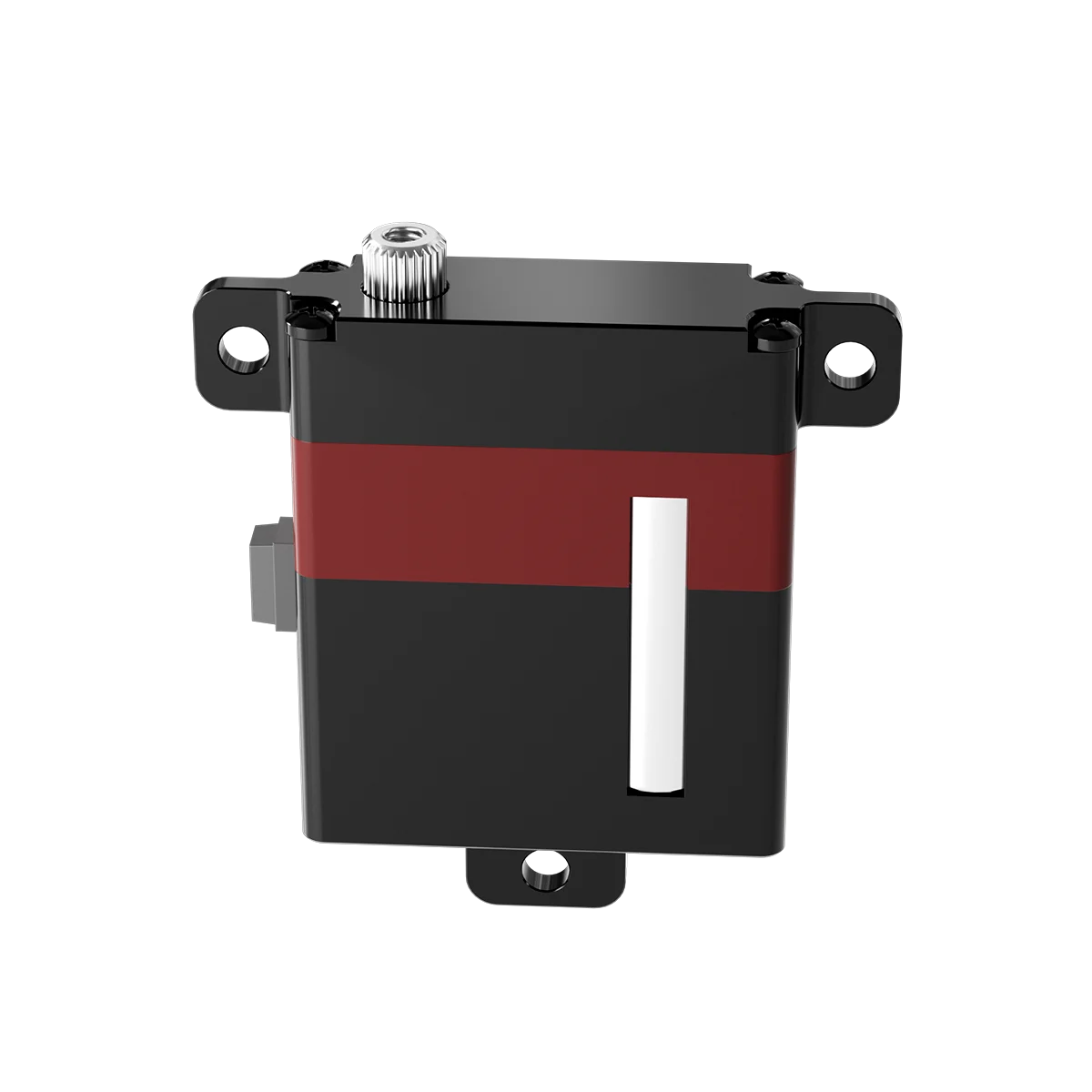

R-B13 Digital Servo
A compact high-torque servo for responsive motion, R-B13 delivers up to 13.6 kgf·cm torque with a lightweight 26.5g design, making it well suited for robotic joints, RC systems and compact motion control applications.
- 13.6 kgf·cm High Torque
- 0.10 sec/60° Fast Response
- 26.5g Lightweight & Compact
Parameter
| R-B13 | |||
| Operating Voltage | 6V | 7.4V | 8.4V |
| No-load Speed (±10%) | 0.14sec/60° | 0.12sec/60° | 0.10sec/60° |
| Stall Torque (±10%) | 8kgf·cm | 11.5kgf·cm | 13.6kgf·cm |
| Centering Error | ≤ ±1° | ||
| Motor Type | Coreless Motor | ||
| Gear Material | Full Metal | ||
| Housing Material | Aluminum Alloy | ||
| Dimension | 35*10*35.5mm | ||
| Weight | 26.5g (±10%) | ||
