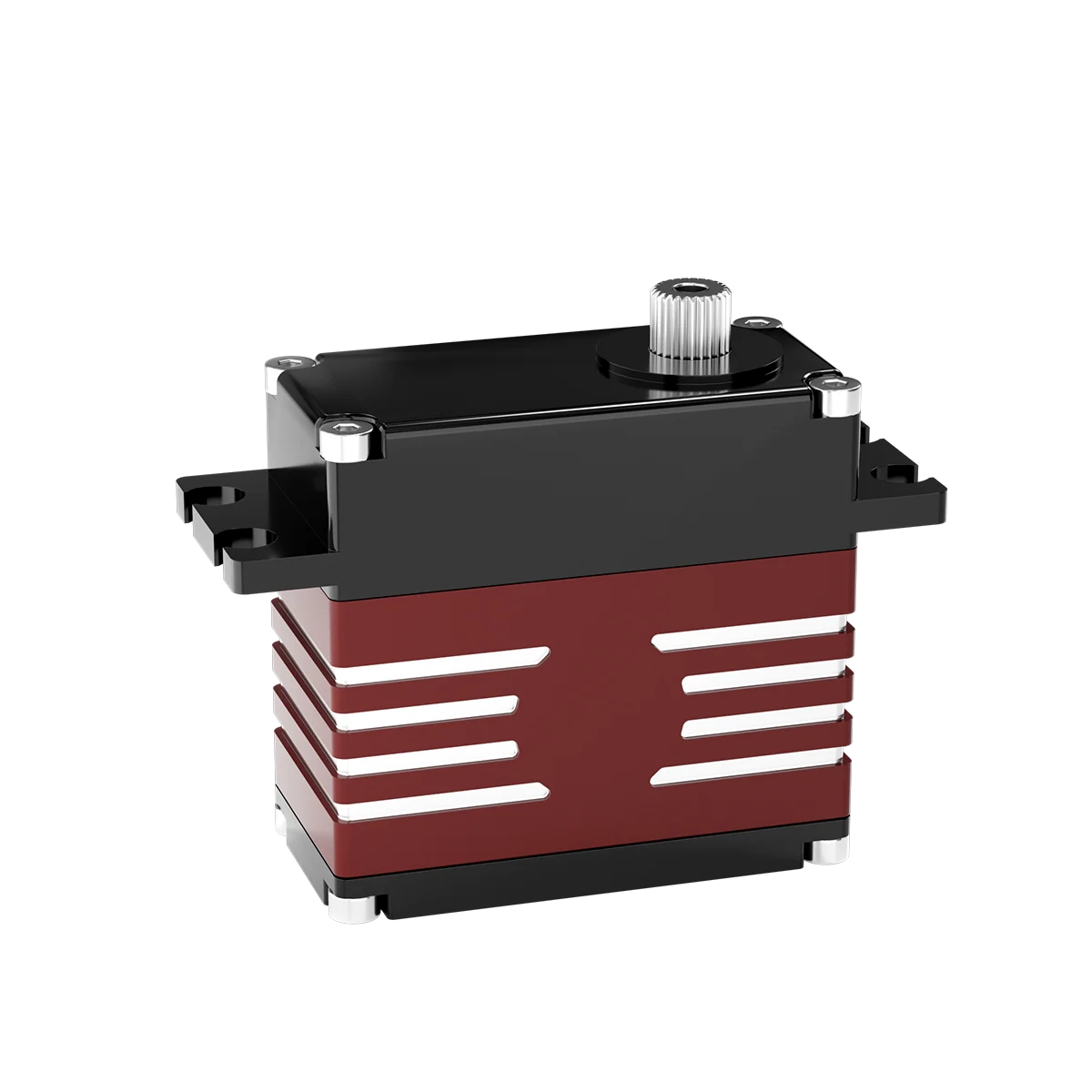

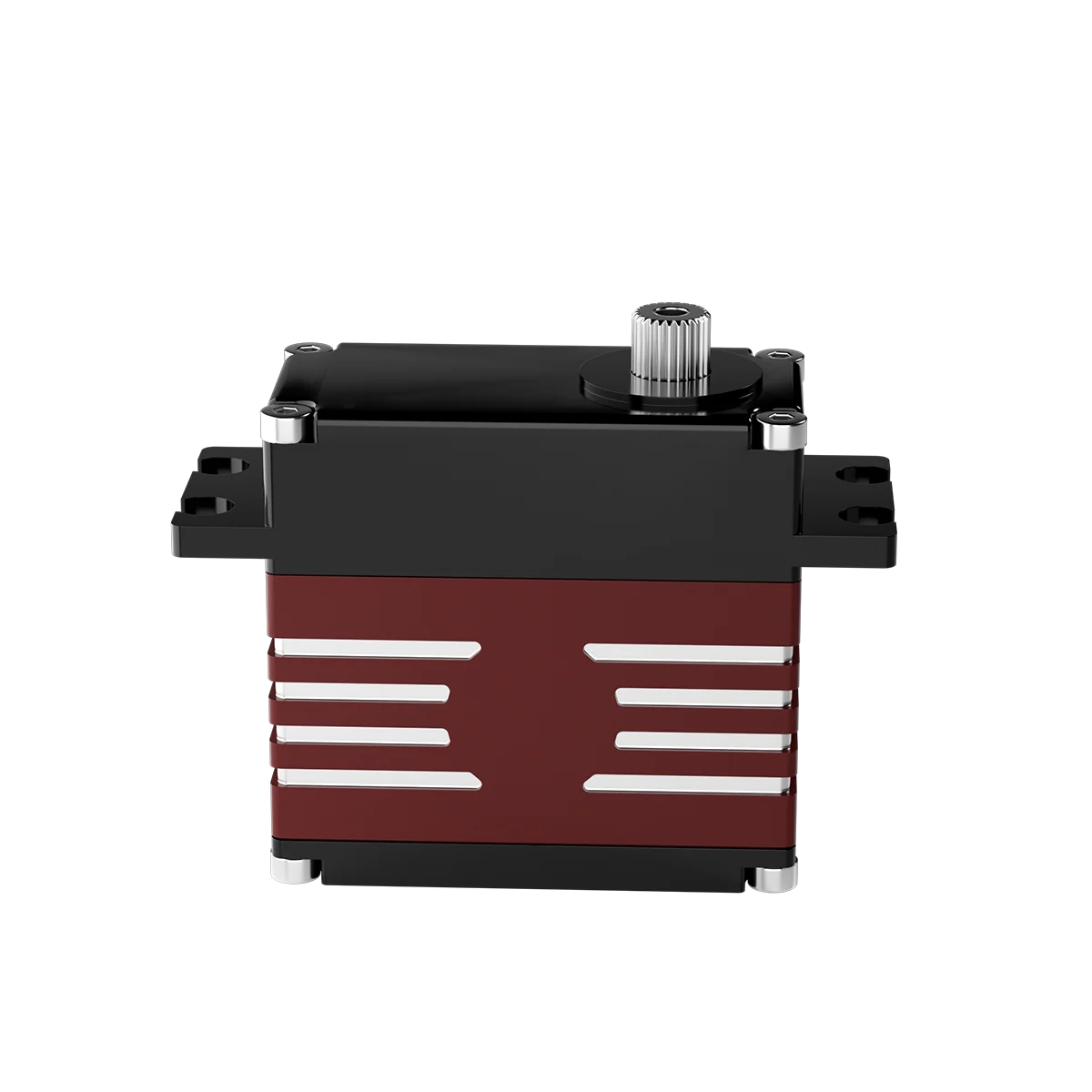

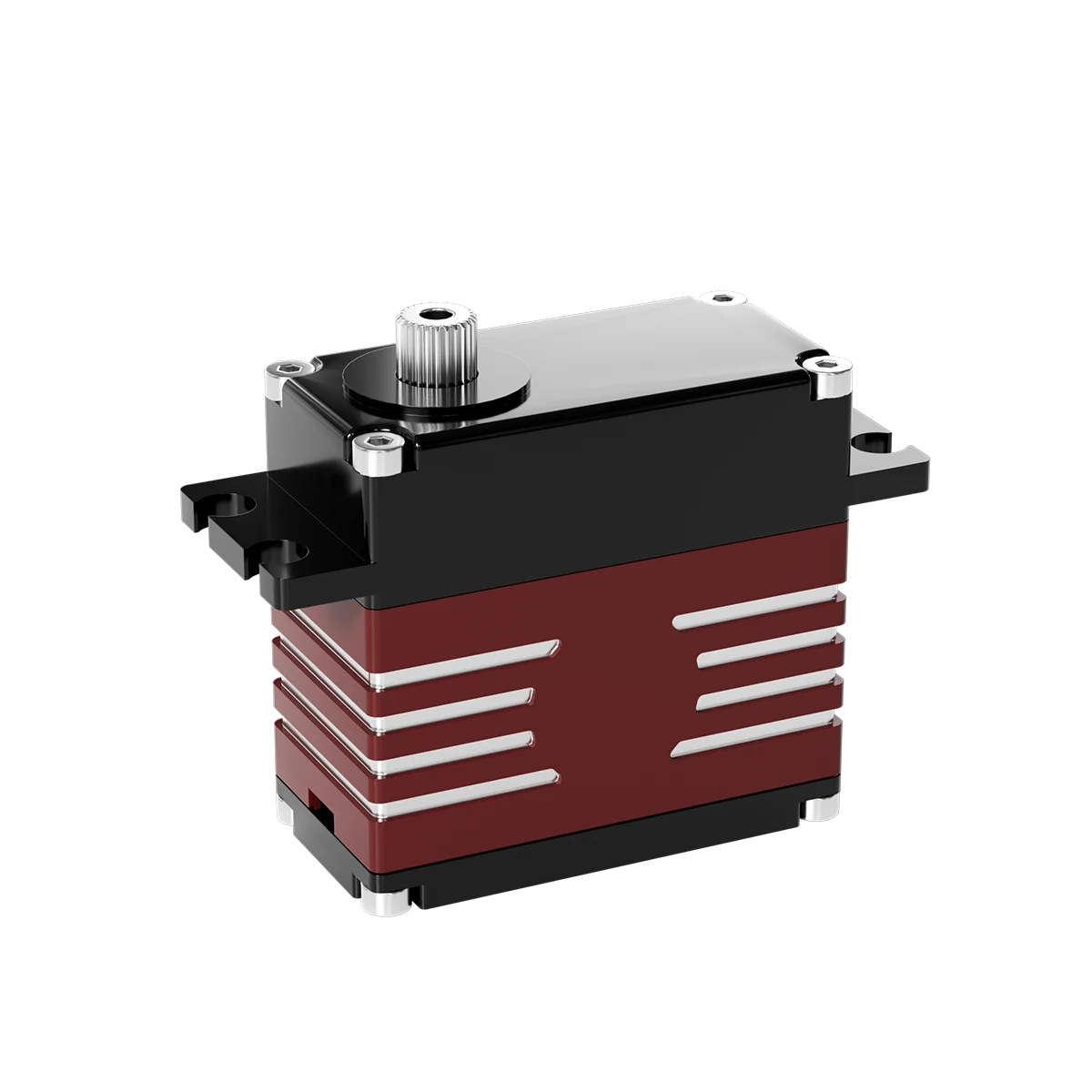

R-A40 Digital Servo
R-A40 high-torque digital servo motor with an aluminum alloy housing, Brushless Coreless Motor and full-metal gears, designed for robotic joints, automation and high-performance motion systems.
- 38 kgf·cm High Torque
- 0.085 sec/60° Fast Response
- Coreless Motor & Full-Metal Gears
Parameter
| R-A40 | |||
| Operating Voltage | 6V | 7.4V | 8.2V |
| No-load Speed (±10%) | 0.117sec/60° | 0.094sec/60° | 0.085sec/60° |
| Stall Torque (±10%) | 29kgf·cm | 36kgf·cm | 38kgf·cm |
| Centering Error | ≤ ±1° | ||
| Motor Type | Brushless Coreless Motor | ||
| Gear Material | Full Metal | ||
| Housing Material | Aluminum Alloy | ||
| Dimension | 40*20*38.35mm | ||
| Weight | 80g (±10%) | ||
