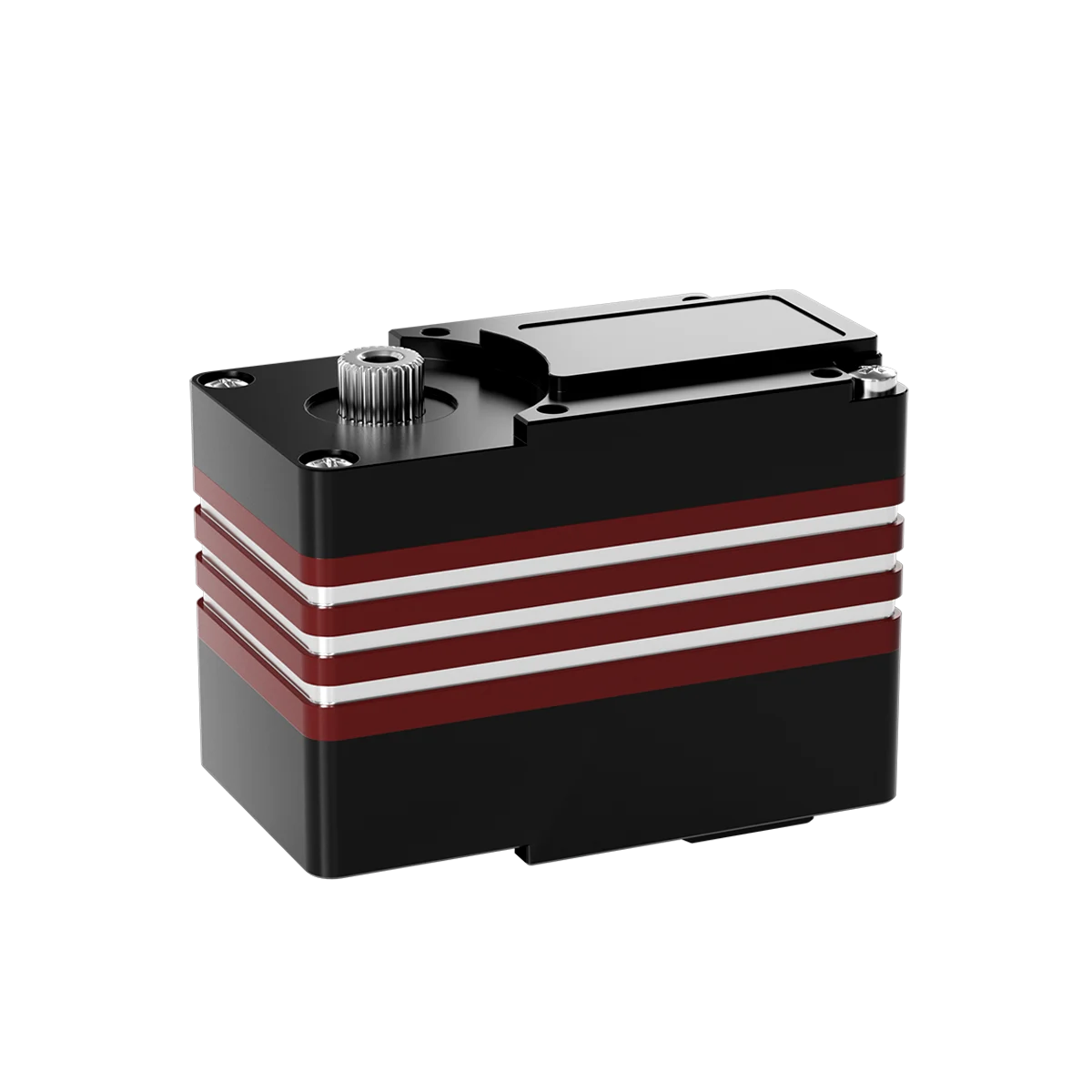

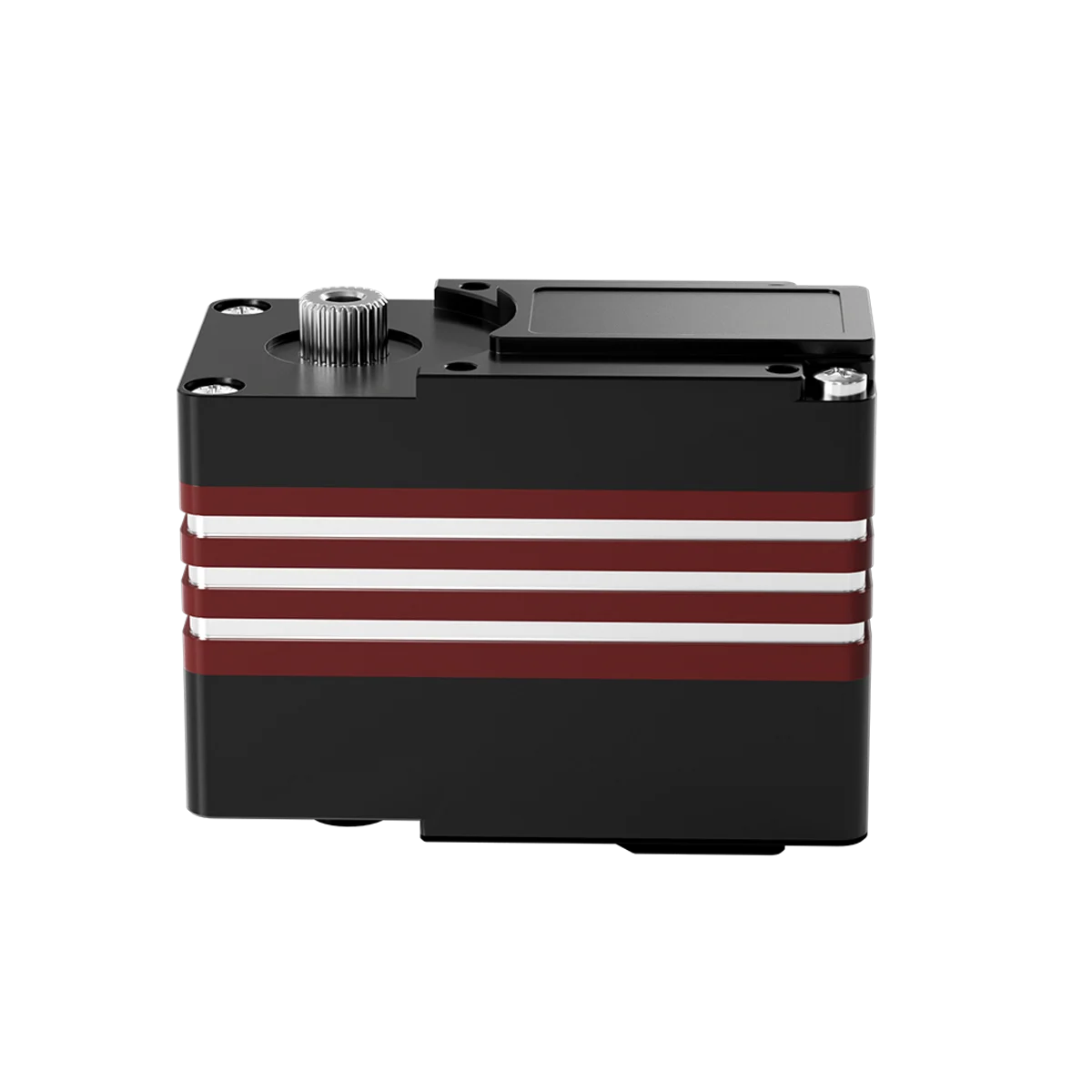

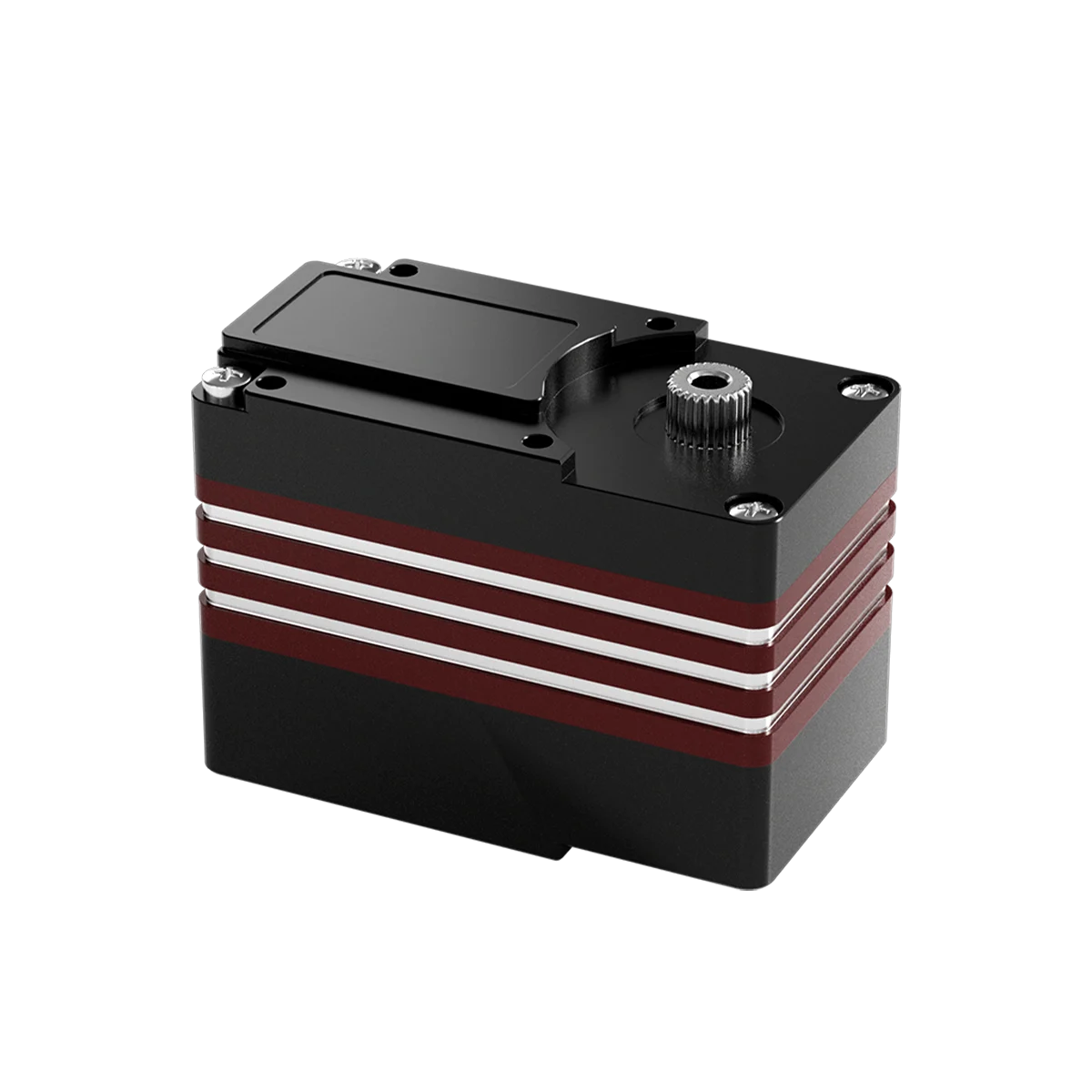

B-A35 Digital Bus Servo
B-A35 is a high-torque servo designed for demanding motion applications, delivering 35 kgf·cm torque at 12V with a durable metal gear train, ball bearings and aluminum alloy housing.
- 35 kgf·cm High Torque
- 12V Brushed Motor
- Metal Gears & Ball Bearings
Parameter
| B-A35 | |
| Operating Voltage | 12V |
| No Load Speed (±10%) | 0.19sec/60° |
| Stall Torque (At Locked) (±10%) | 35Kgf·cm |
| Stall Current (At Locked) (±10%) | ≤2.5A |
| Idle Current (At Stopped) | 10mA |
| Size | 42*33*74mm |
| Case Material | A6061 Aluminum Alloy |
| Gear Material | Metal |
| Bearing Type | Ball bearings |
| Motor | Brushed Motor |
