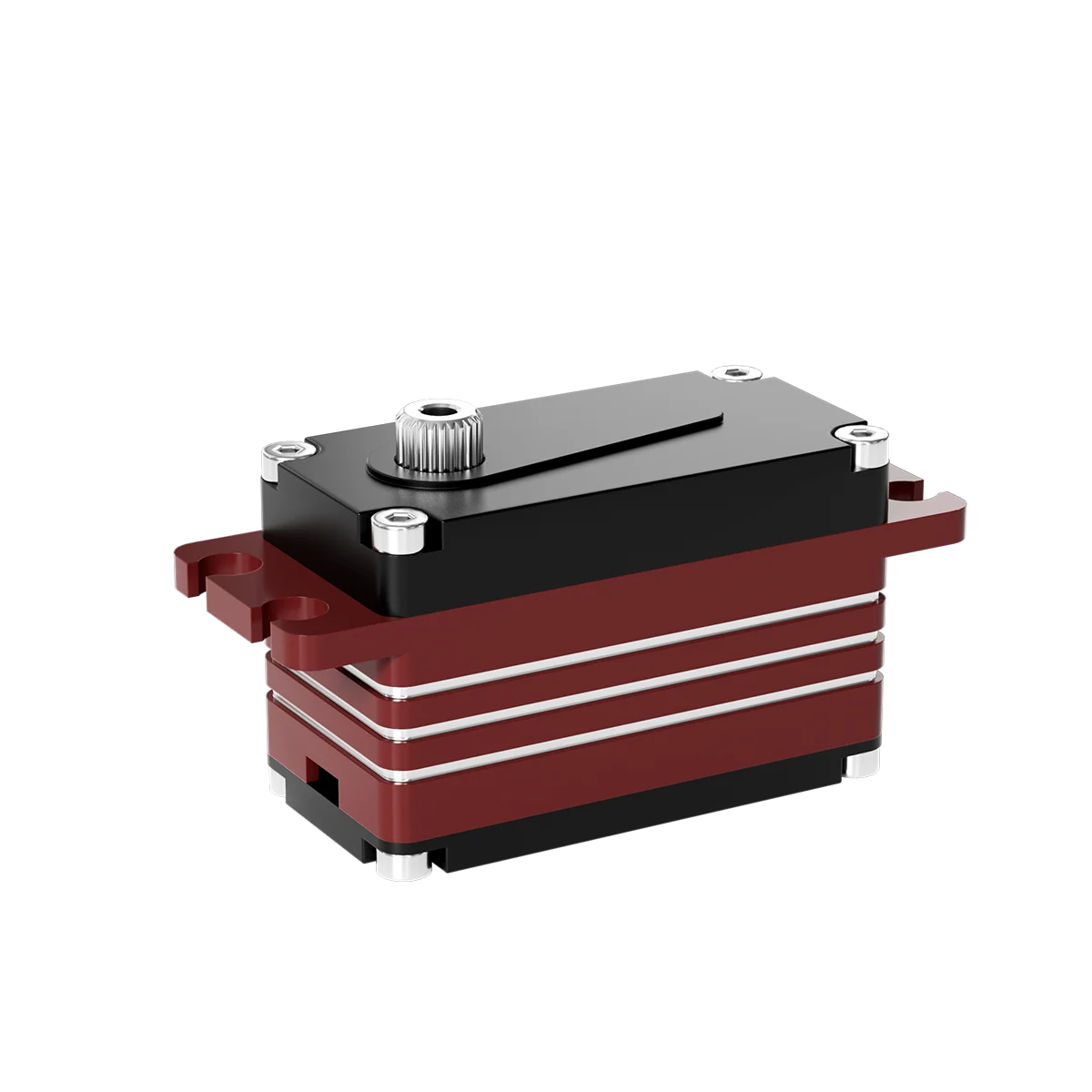

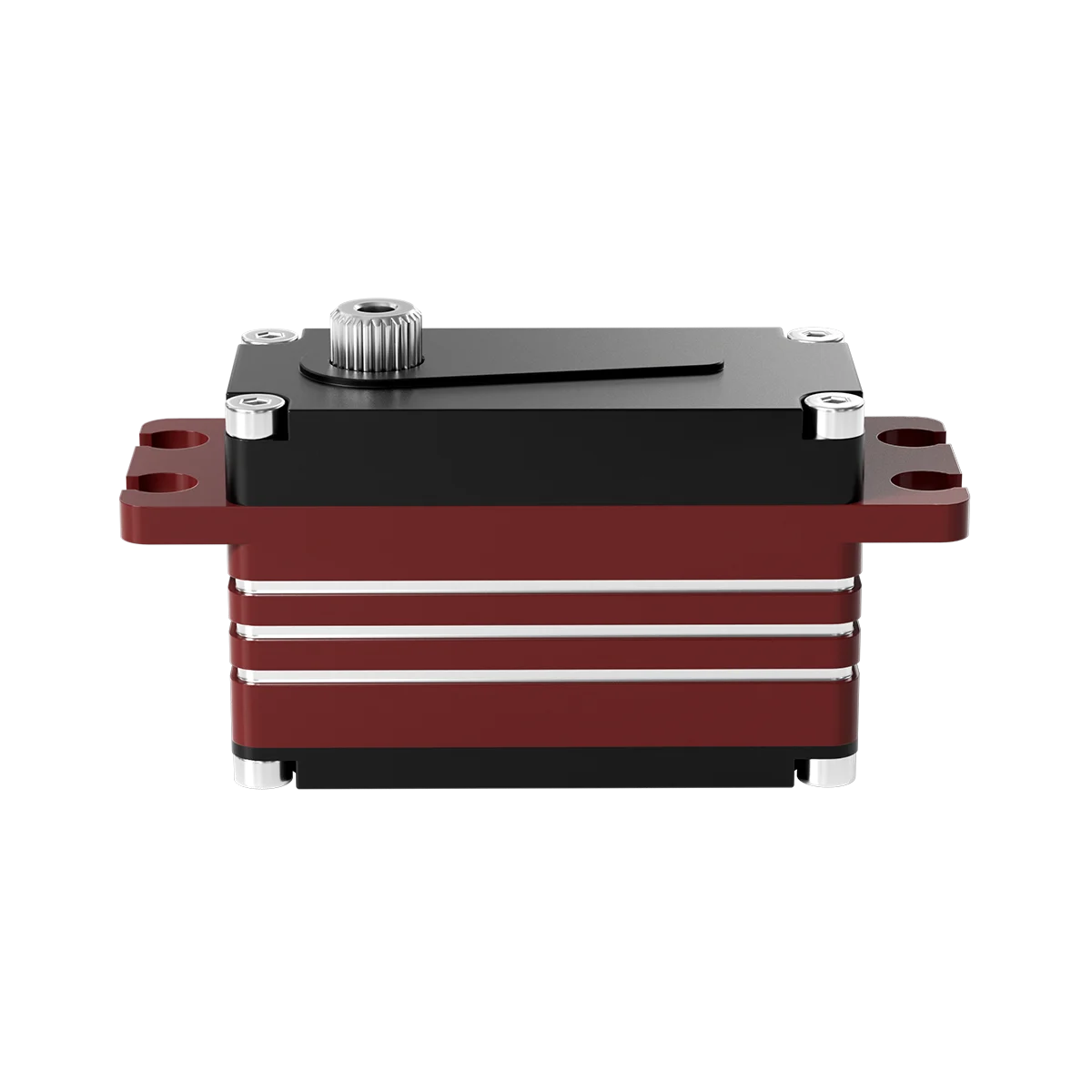

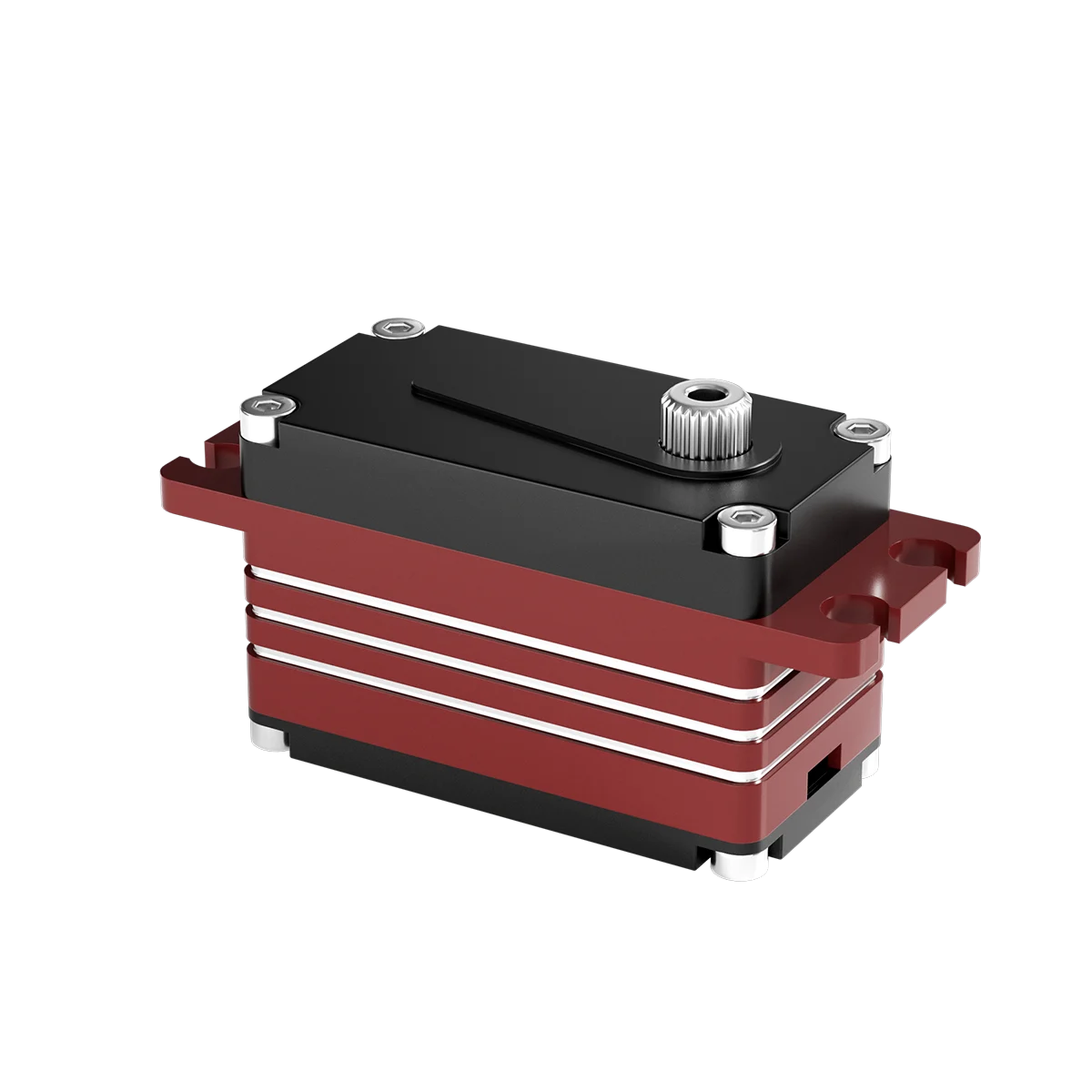

R-A16 Digital Servo
Built for demanding motion applications, R-A16 Digital Servo Motor combines 16.2 kgf·cm high torque with 0.06 sec/60° response in a compact aluminum alloy housing.
- 16.2 kgf·cm High Torque
- 0.06 sec/60° Fast Response
- Brushless Coreless Motor & Full-Metal Gears
Parameter
| R-A16 | |||
| Operating Voltage | 6V | 7.4V | 8.2V |
| No-load Speed (±10%) | 0.08sec/60° | 0.07sec/60° | 0.06sec/60° |
| Stall Torque (±10%) | 12.0kgf·cm | 15.0kgf·cm | 16.2kgf·cm |
| Centering Error | ≤ ±1° | ||
| Motor Type | Brushless Coreless Motor | ||
| Gear Material | Full Metal | ||
| Housing Material | Aluminum Alloy | ||
| Dimension | 40.5*20.5*25.9mm | ||
| Weight | 58g (±10%) | ||
