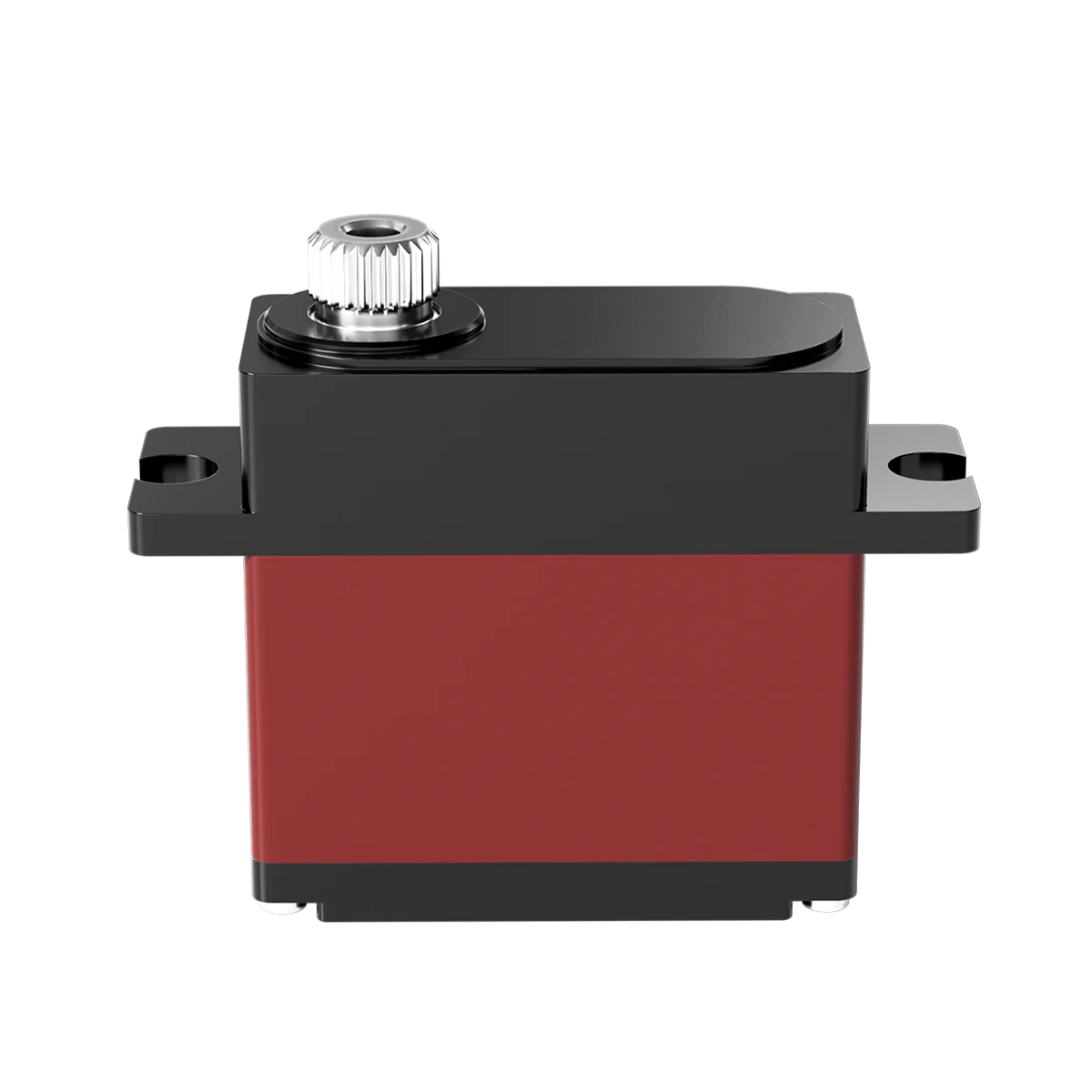

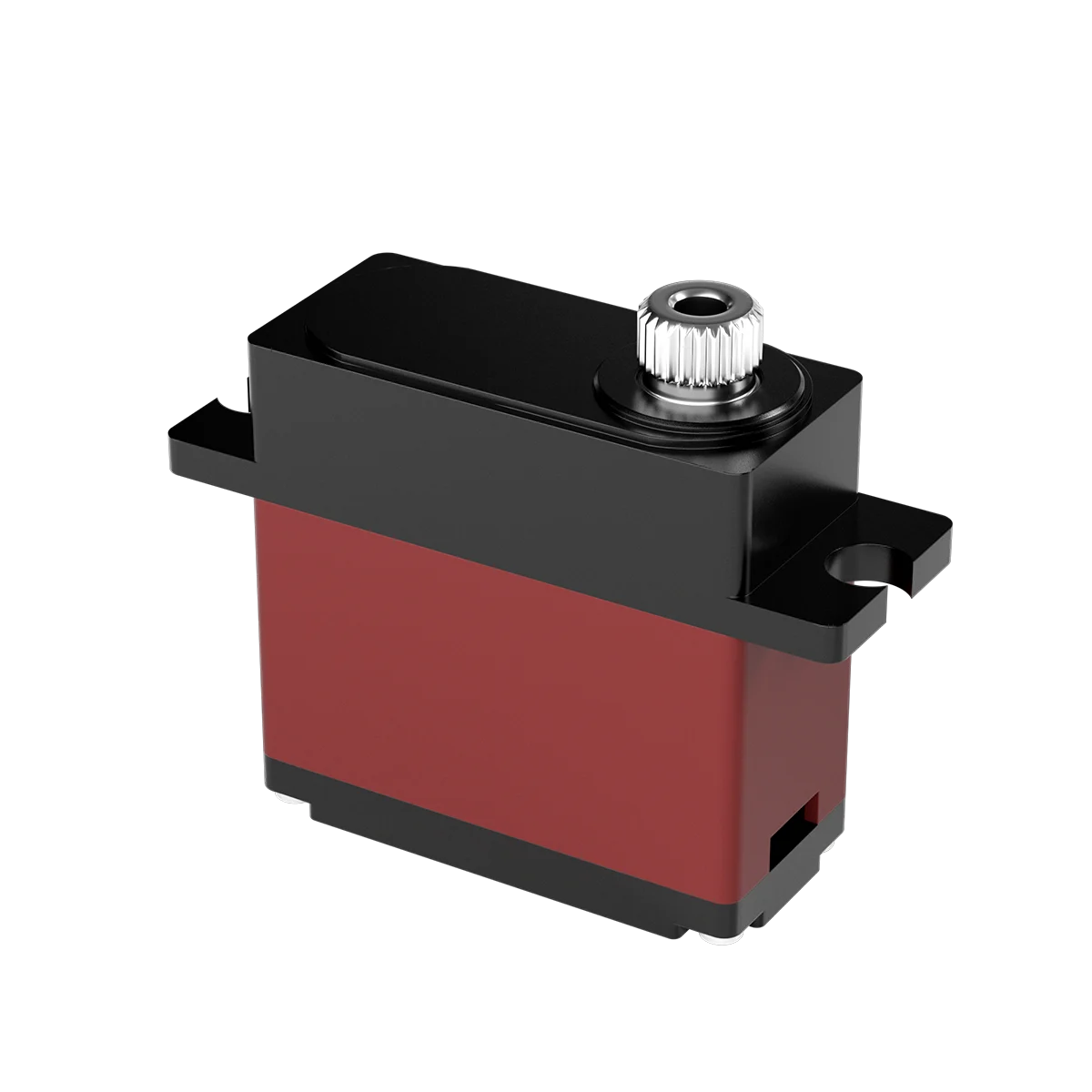

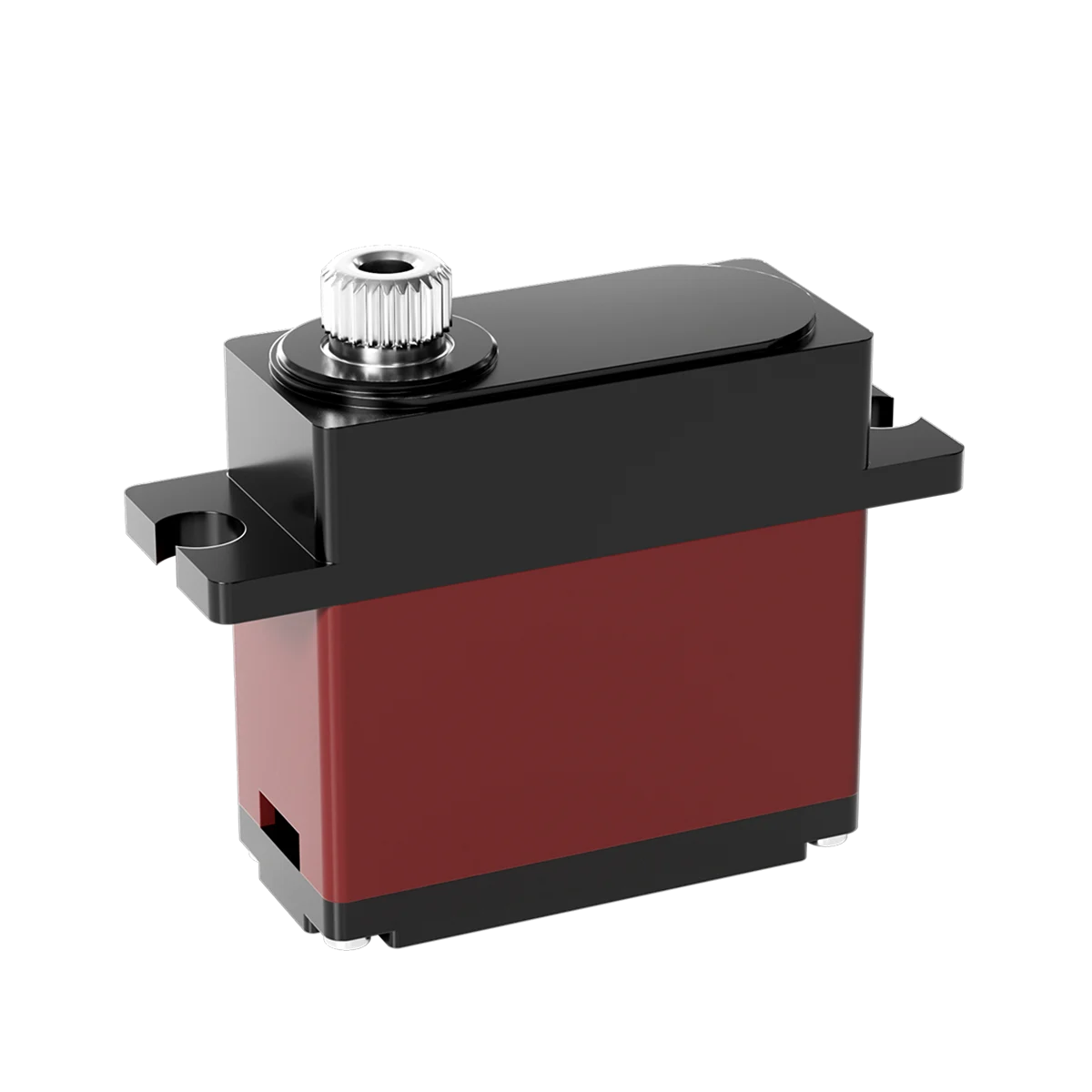

R-A12 Digital Servo
R-A12 is a compact digital servo motor featuring a coreless brushed motor, all-metal gears and up to 12 kgf·cm torque. With 6V/7.4V operating voltage and ≤1° deadband, it is designed for robotic joints, RC applications, automation equipment.
- Up to 12 kgf·cm Torque
- 6V / 7.4V Operating Voltage
- All-Metal Gear Train
Parameter
| R-A12 | ||
| Operating Voltage | 6V | 7.4V |
| No-load Speed (±10%) | 0.12sec/60° | 0.15sec/60° |
| Stall Torque (±10%) | 10kgf·cm | 12kgf·cm |
| Centering Error | ≤ ±1°
|
|
| Motor Type | Brushed Coreless Motor | |
| Gear Material | Full Metal | |
| Housing Material | Aluminum Alloy | |
| Dimension | 38.25*12.6*31.4mm | |
| Weight | 28g (±10%) | |
