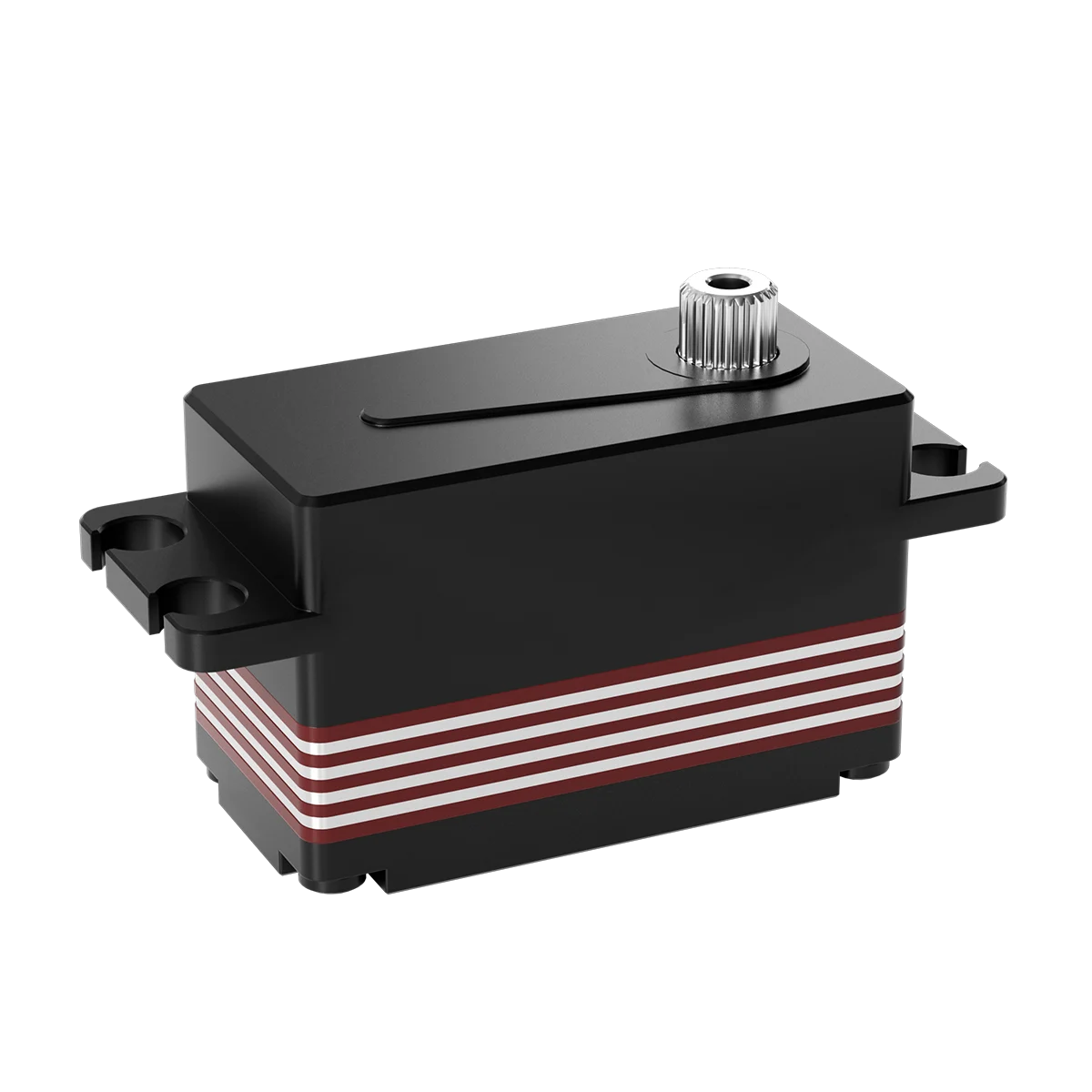

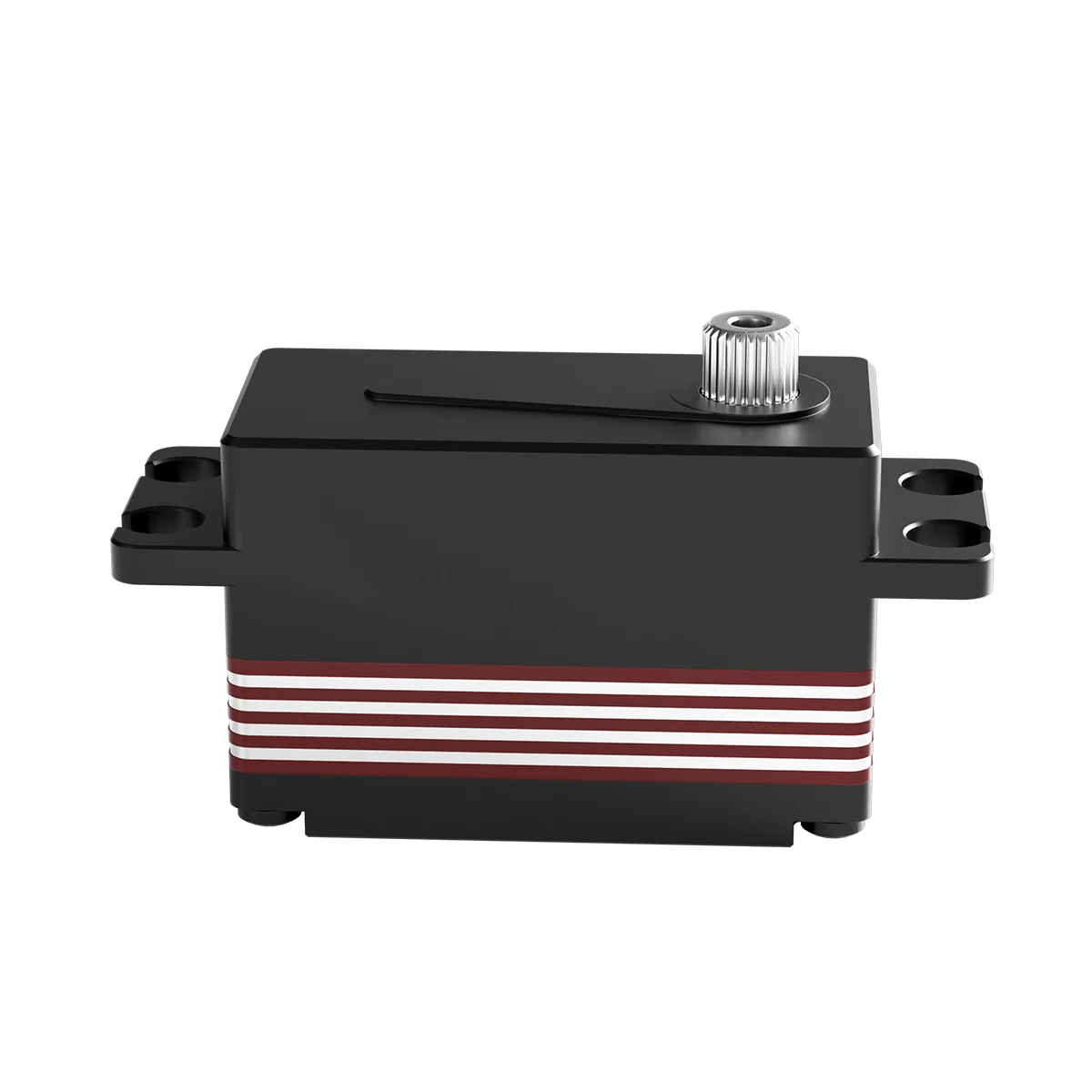

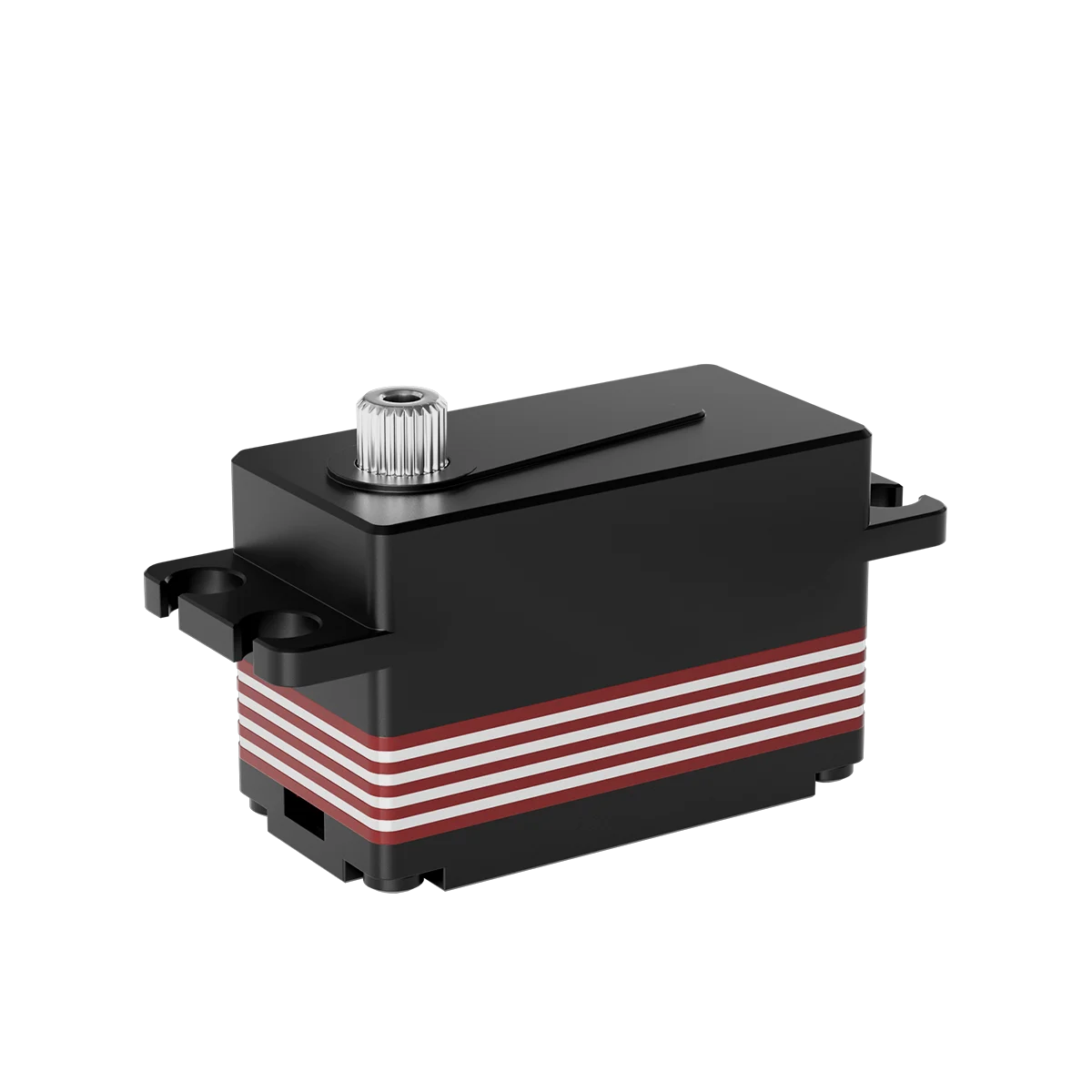

R-A13 Digital Servo
R-A13 is a high-torque digital servo motor featuring a coreless motor and full-metal gears. With up to 13 kgf·cm torque, 0.07 sec/60° response speed and 4.8V–7.4V operation, it delivers powerful and responsive motion in compact applications.
- 13 kgf·cm High Torque
- 0.07 sec/60° Fast Response
- Full-Metal Gears & Coreless Motor
Parameter
| R-A13 | |||
| Operating Voltage | 4.8V | 6.0V | 7.4V |
| No-load Speed (±10%) | 0.10sec/60° | 0.08sec/60° | 0.07sec/60° |
| Stall Torque (±10%) | 8.5kgf·cm | 10.7kgf·cm | 13.0kgf·cm |
| Centering Error | ≤ ±1° | ||
| Motor Type | Coreless Motor | ||
| Gear Material | Full Metal | ||
| Housing Material | Aluminum Alloy | ||
| Dimension | 40*20*26.5mm | ||
| Weight | 58g (±10%) | ||
