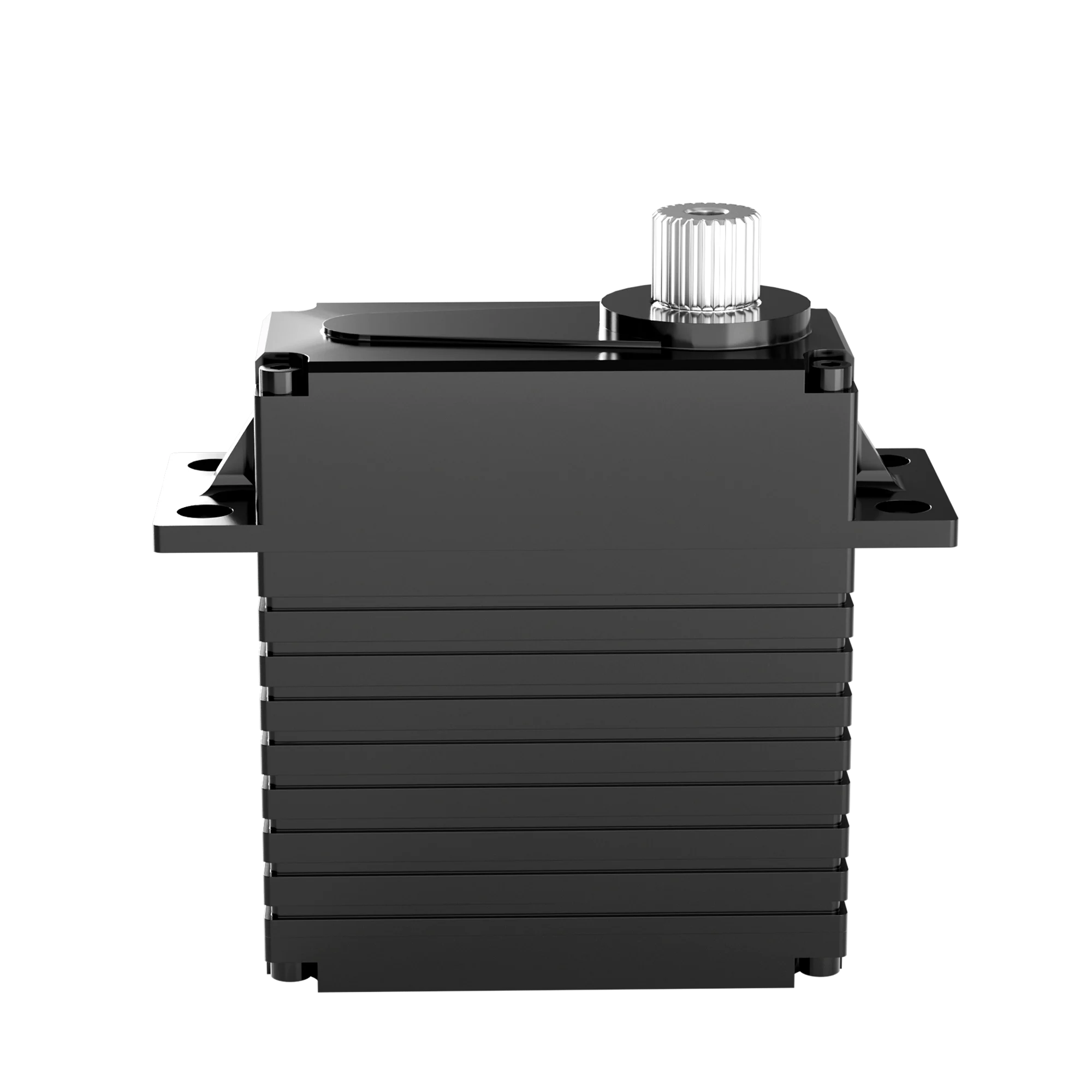

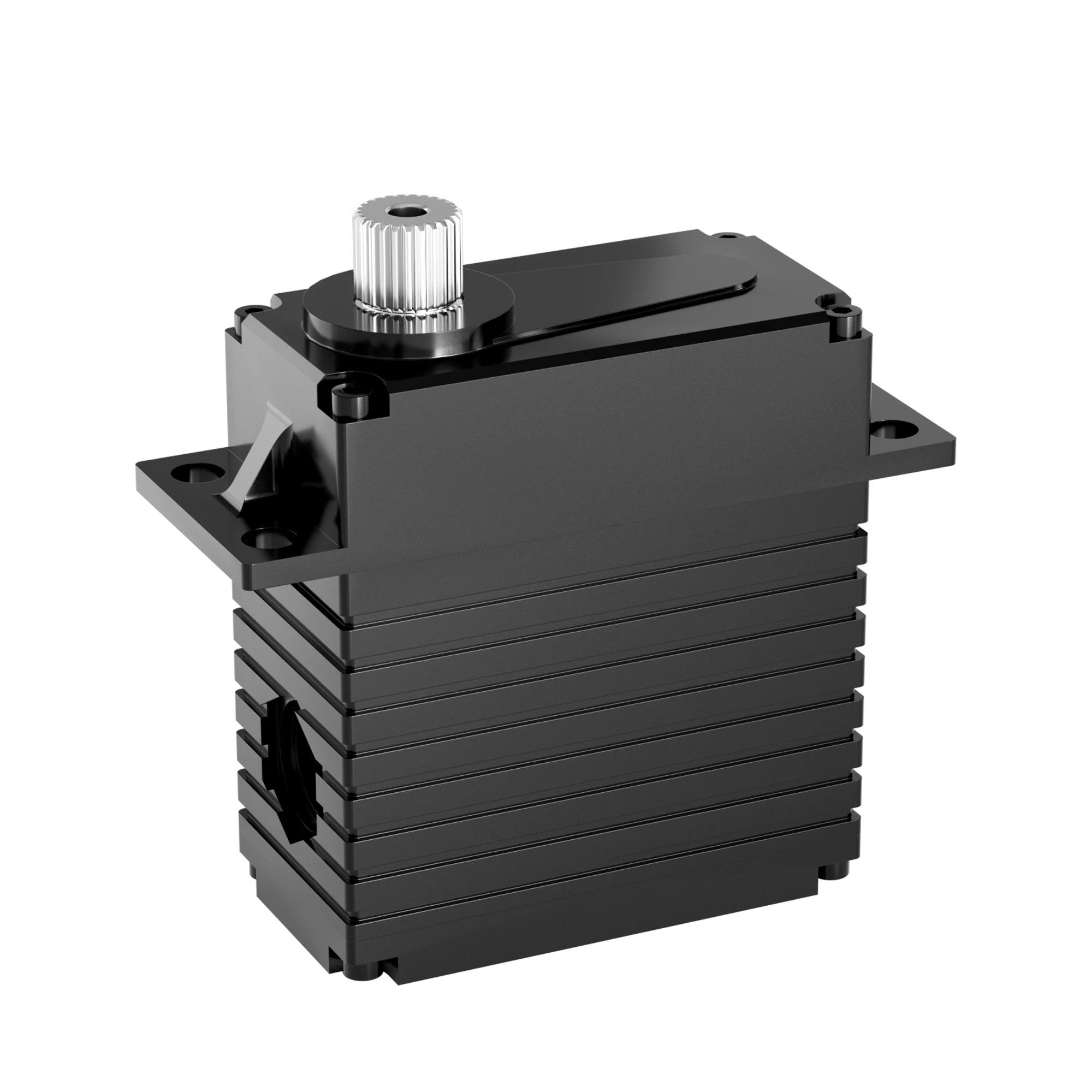

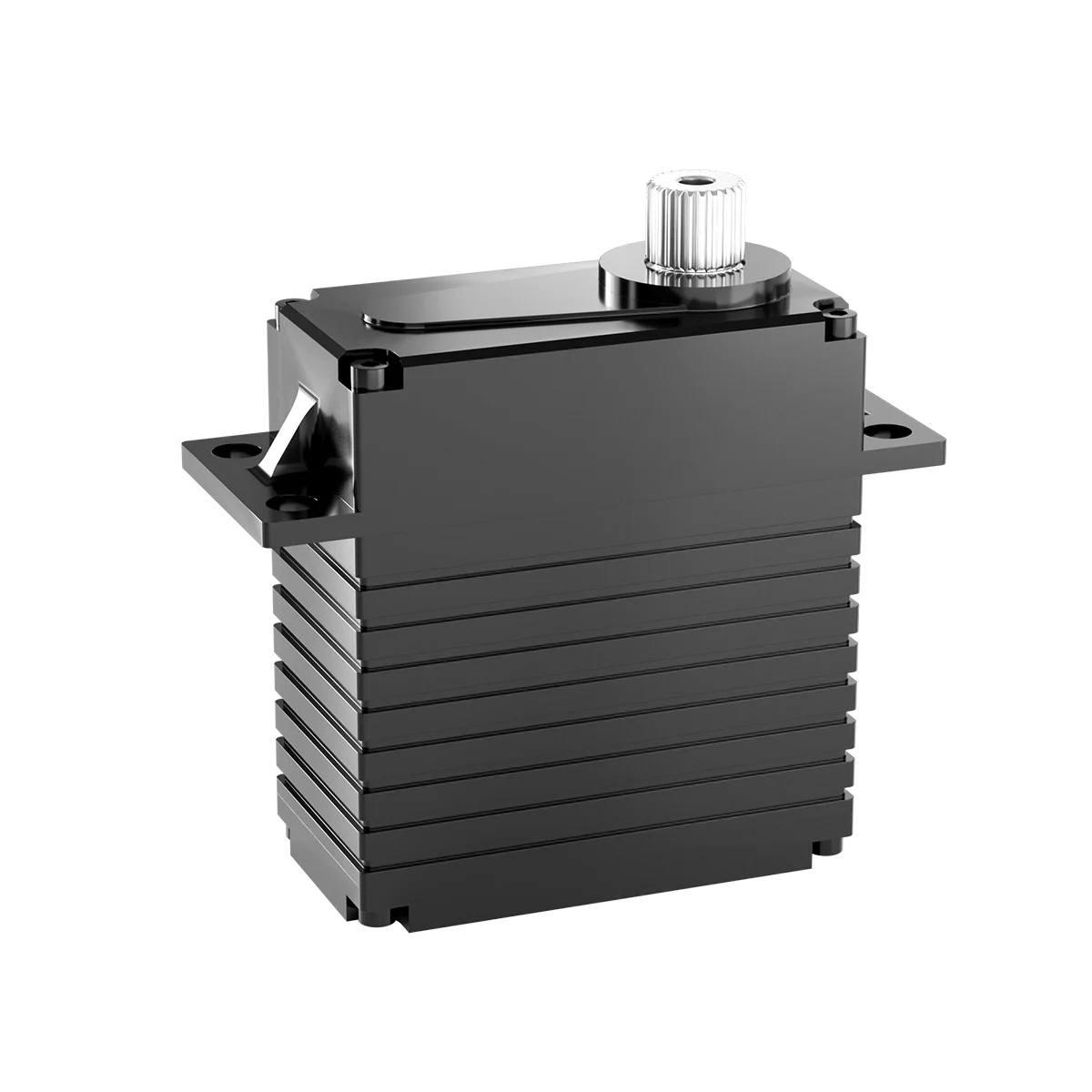

R-A120 High Torque Digital Servo
Designed for heavy-duty motion applications, R-A120 Digital Servo delivers an impressive 120 kgf·cm torque at 24V, with a brushless coreless motor and all-metal gears for powerful and reliable motion control.
- 120 kgf·cm Ultra-High Torque
- 24V Brushless Coreless Motor
- All-Metal Gears for Heavy-Duty Motion
Parameter
| R-A120 | |
| Operating Voltage | 24V |
| No-load Speed (±10%) | 0.12sec/60° |
| Stall Torque (±10%) | 120kgf·cm |
| Centering Error | ≤ ±1° |
| Motor Type | Brushless Coreless Motor |
| Gear Material | Full Metal |
| Housing Material | Aluminum Alloy |
| Dimension | 64*33*74mm |
| Weight | 360g (±10%) |
