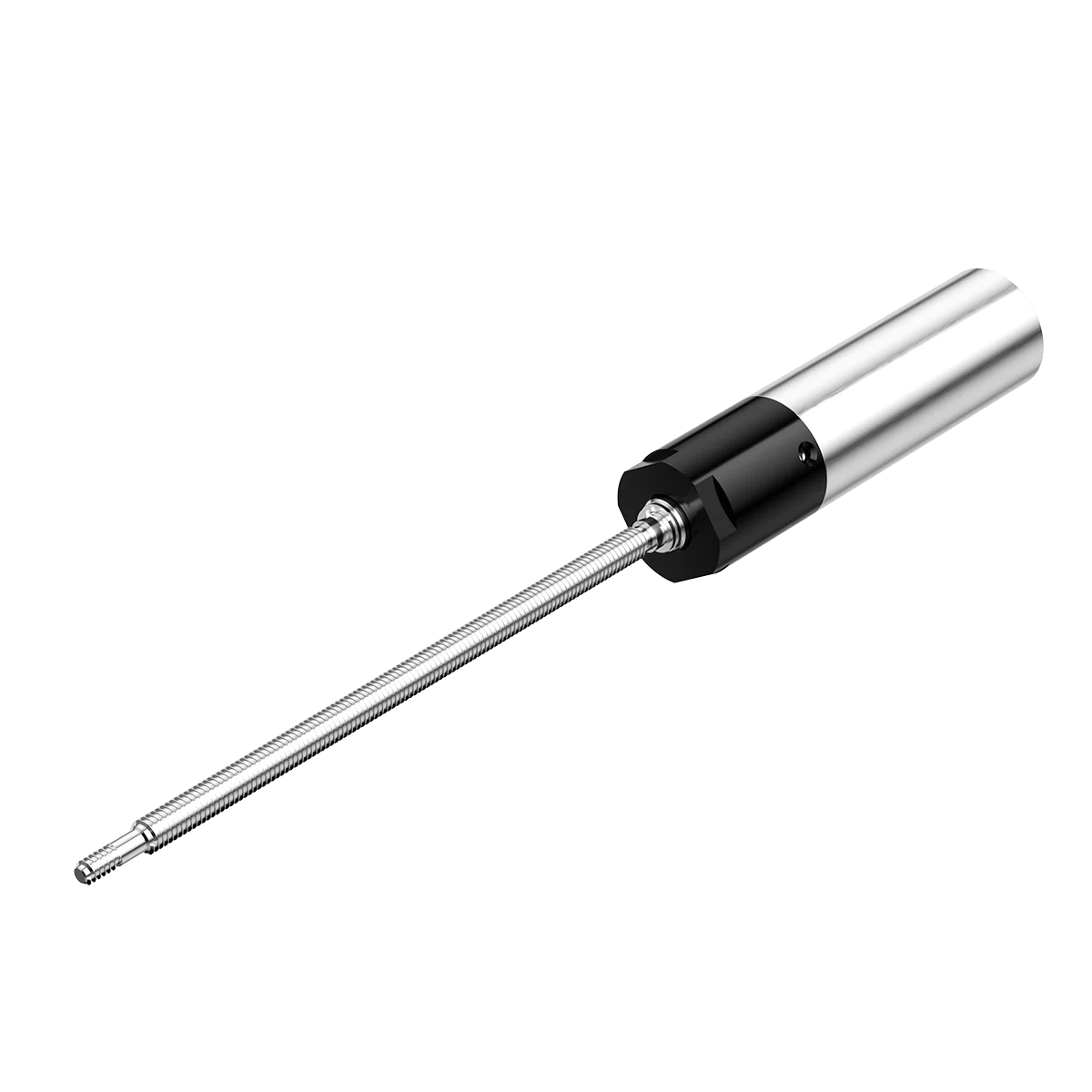

PG-P12 Powder Metallurgy Gear Motor
PG-P12 Powder Metallurgy Gear Motor is a compact 12 mm transmission solution featuring a powder metallurgy gear set and oil-impregnated output bearing. With up to 4.5 kgf·cm allowable momentary torque, multiple planetary-stage configurations and a -30°C to +100°C operating temperature range, it is suited to Garden robots, smart robots, smart home devices.
- 12mm Miniature Transmission Design
- Powder Metallurgy Gear Technology
- Oil-Impregnated Output Bearing
- Up to 4.5 kgf·cm Momentary Torque
Parameter
| PG-P12 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 4,6 | 16, 24, 36 | 64, 96, 144, 216 | 256, 384, 576, 864, 1296 |
| Gear Length (mm) | 12.4 | 16.2 | 20 | 23.8 |
| Max. Allowable Continuous Torque (kgf·cm) | 0.5 | 1 | 2 | 3 |
| Max. Allowable Momentary Torque (kgf·cm) | 0.8 | 1.5 | 3 | 4.5 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 12 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Oil-Impregnated Bearing | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
