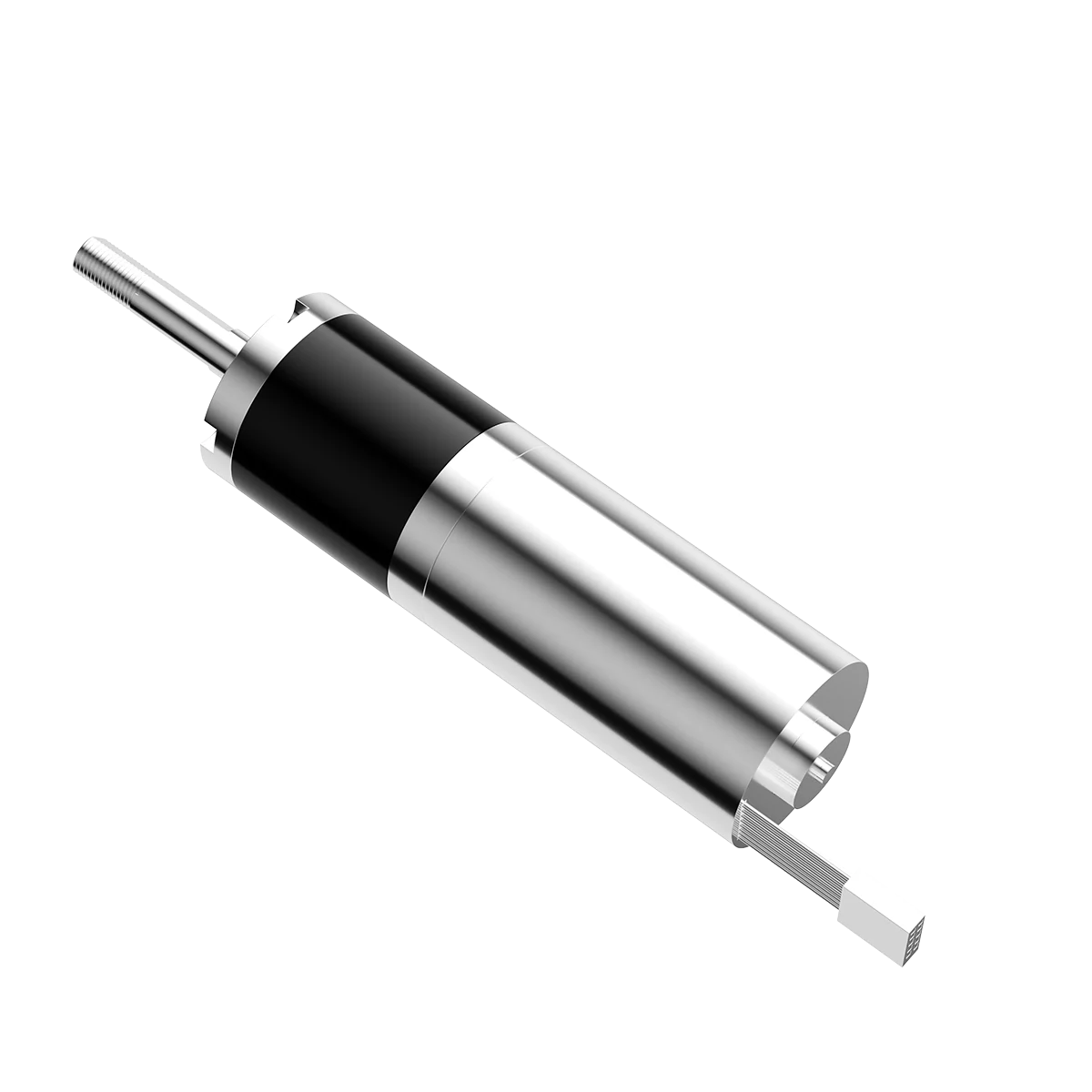

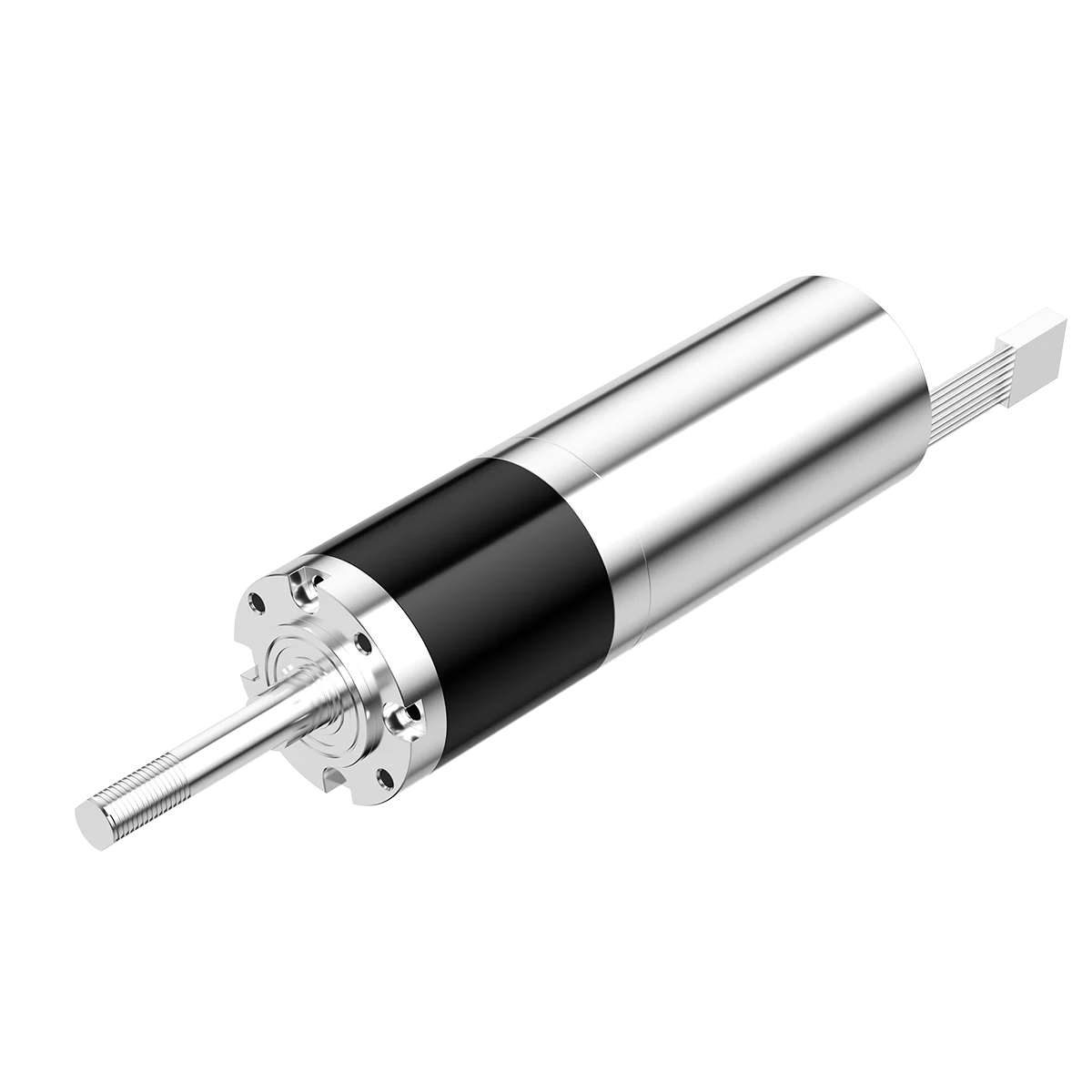

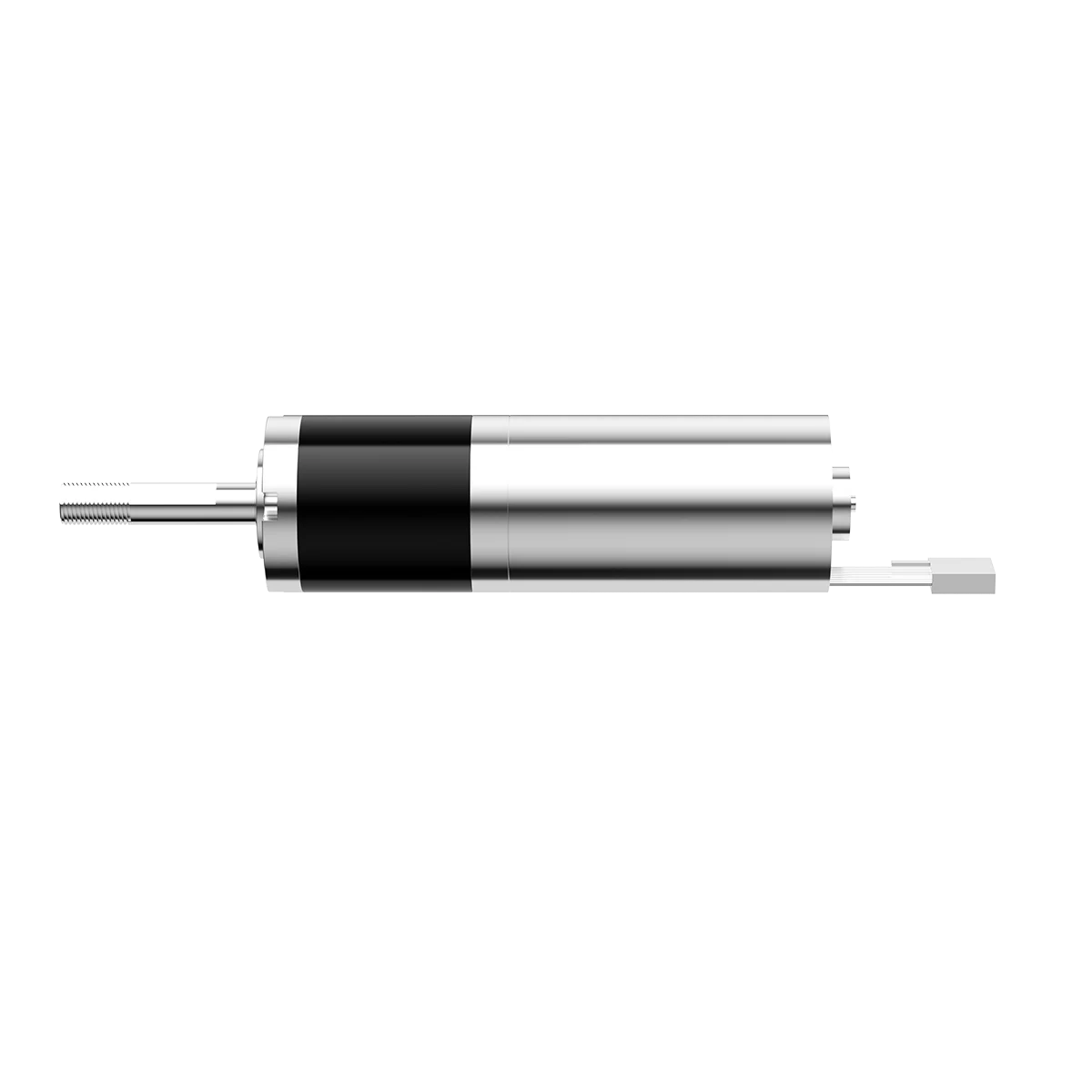

PG-P42 Powder Metallurgy Gear Motor
PG-P42 Powder Metallurgy Gear Motor is a configurable 42 mm planetary gear motor developed for motion systems that require a combination of high torque density and flexible transmission architecture. With up to 120 kgf·cm continuous torque and 180 kgf·cm momentary torque, it provides scalable power transmission for robotic actuators, industrial automation and precision drive systems. Multiple gearbox configurations allow the motor to be adapted to different mechanical and output requirements.
- Up to 180 kgf·cm Momentary Torque
- 42mm High-Torque Planetary Drive
- 4-Stage Transmission Architecture
- OEM/ODM Drive System Customization
Parameter
| PG-P42 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 3.7, 4.3, 5.2 | 13.7, 15.9, 18.4, 19.2, 22.2, 26.9 | 50.9, 58.9, 68.1, 71.2, 78.7, 82.3, 95.2, 99.5, 115.1, 139.1 | 188.6, 218.1, 252.2, 263.7, 291.7, 305, 337.4, 352.7, 368.8, 407.9, 426.5, 493.2, 515.6, 596.3, 721 |
| Gear Length (mm) | 34.1 | 43.8 | 56.5 | 66.2 |
| Max. Allowable Continuous Torque (kgf·cm) | 10 | 50 | 60 | 120 |
| Max. Allowable Momentary Torque (kgf·cm) | 15 | 75 | 90 | 180 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 42 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Ball Bearings | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
