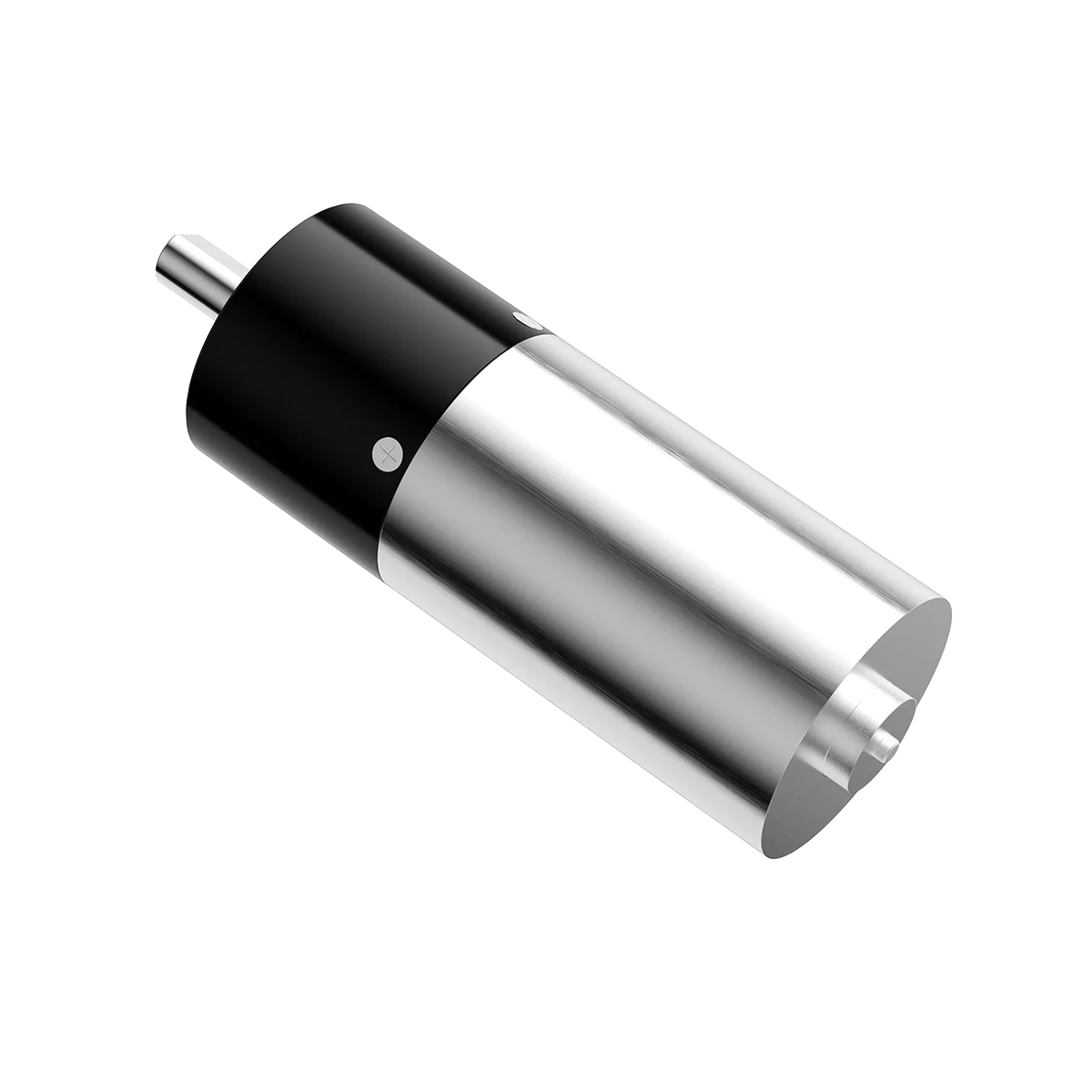

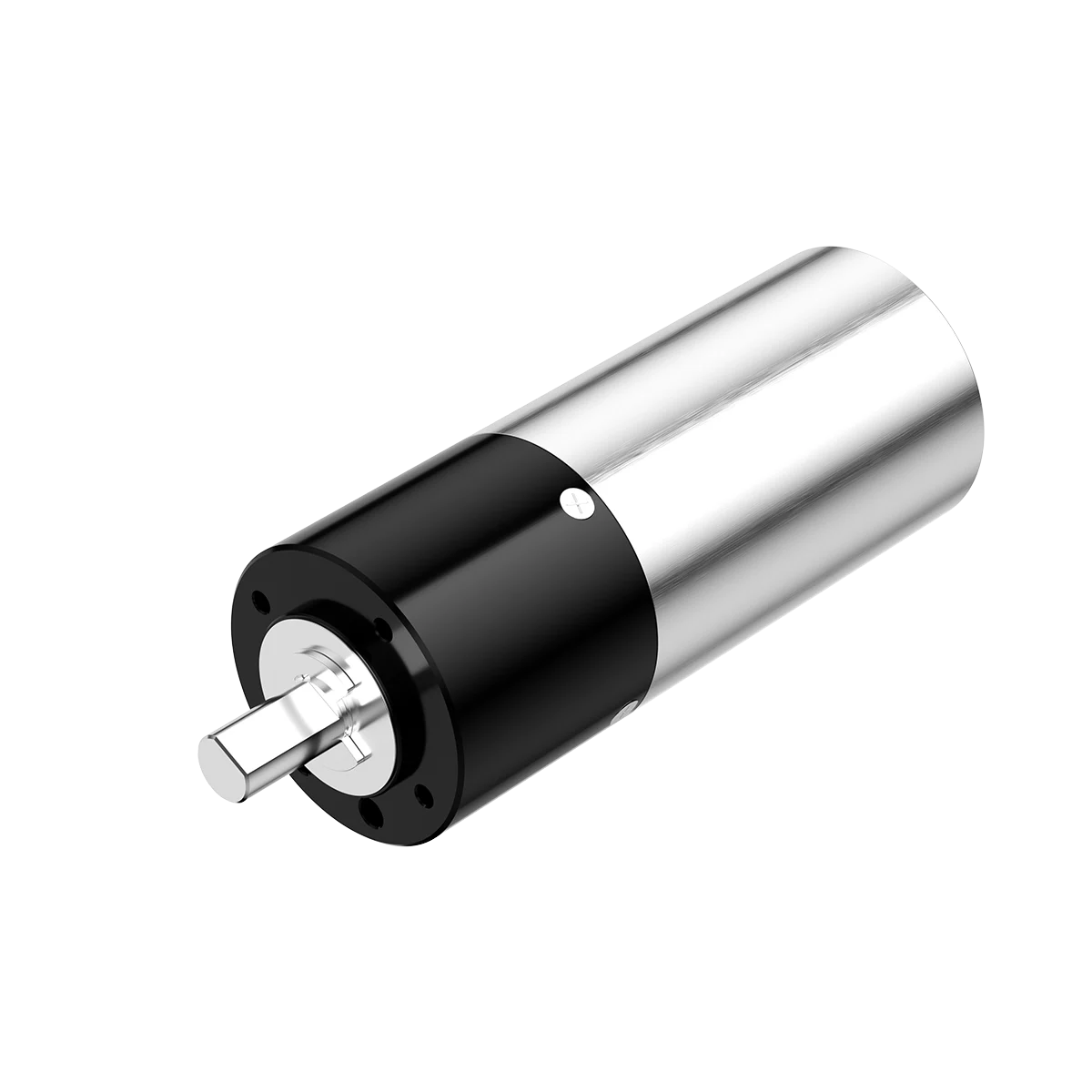

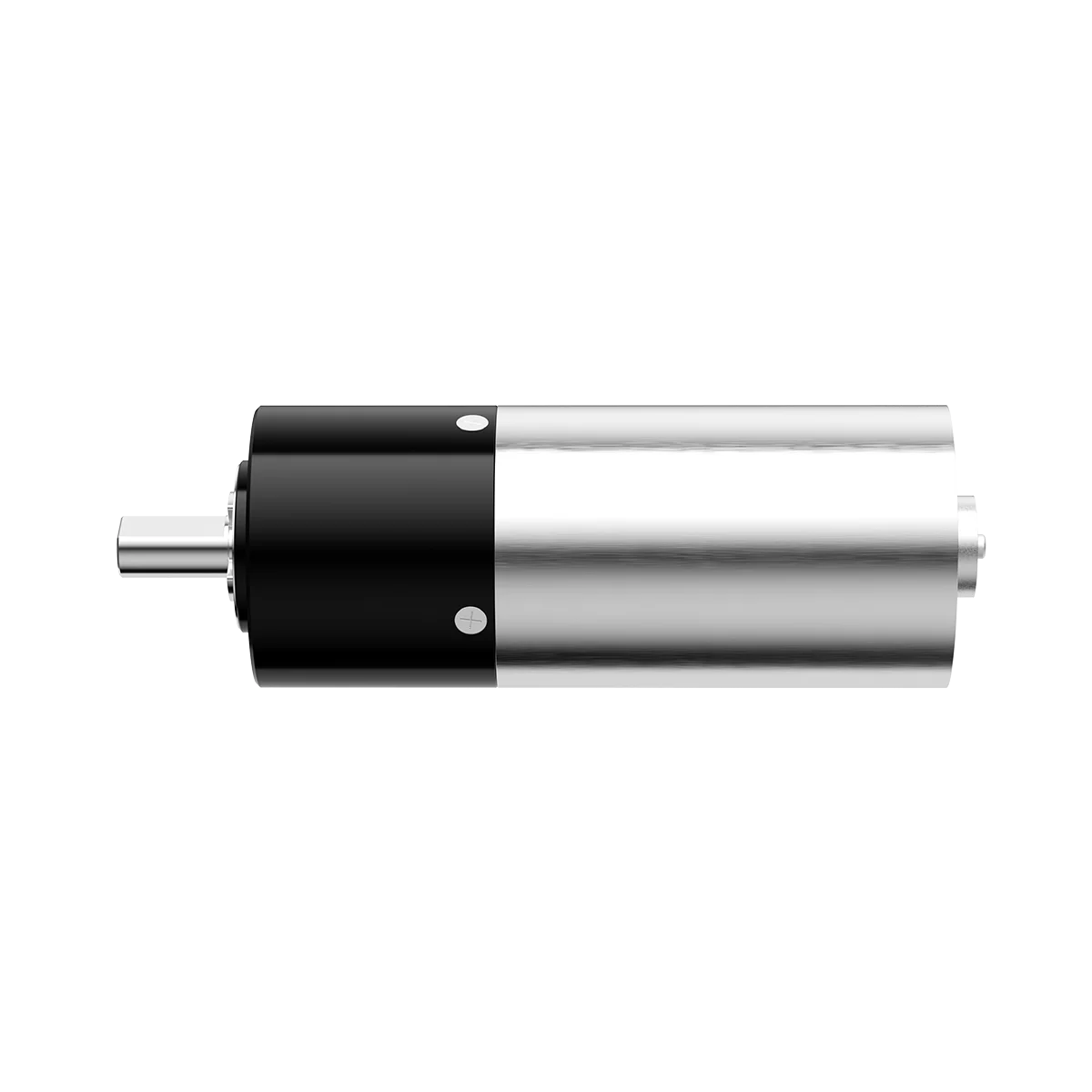

PG-P36 Powder Metallurgy Gear Motor
PG-P36 Powder Metallurgy Gear Motor is a configurable planetary drive designed for customized compact transmission assemblies. With a 36 mm outer diameter, gear lengths ranging from 22.1 to 47.9 mm, and multiple planetary-stage configurations, The motor length can also be matched to the specified motor, supporting application-specific system design.
- 36mm Form Factor
- 22.1–47.9mm Gearbox Length Options
- 90% Single-Stage Transmission Efficiency
- Motor Length Adaptable to Customer Design
Parameter
| PG-P36 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 3.7, 5.2 | 13.7, 19.2, 26.9 | 50.9, 71.2, 99.5, 139.1 | 188.6, 263.7, 368.8, 515.6, 721 |
| Gear Length (mm) | 22.1 | 30.7 | 39.3 | 47.9 |
| Max. Allowable Continuous Torque (kgf·cm) | 7.5 | 40 | 60 | 60 |
| Max. Allowable Momentary Torque (kgf·cm) | 11 | 60 | 90 | 90 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 36 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Ball Bearings | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
