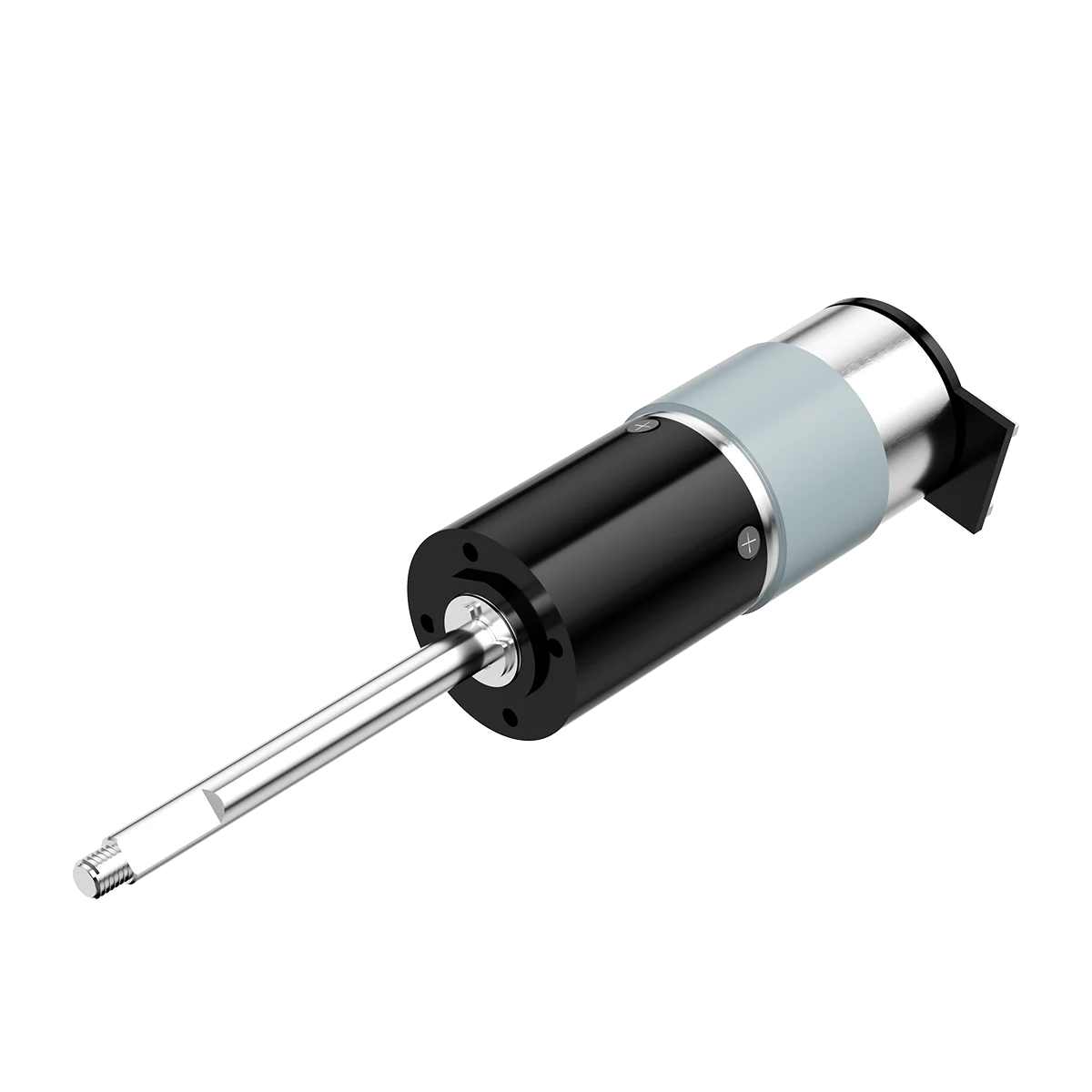

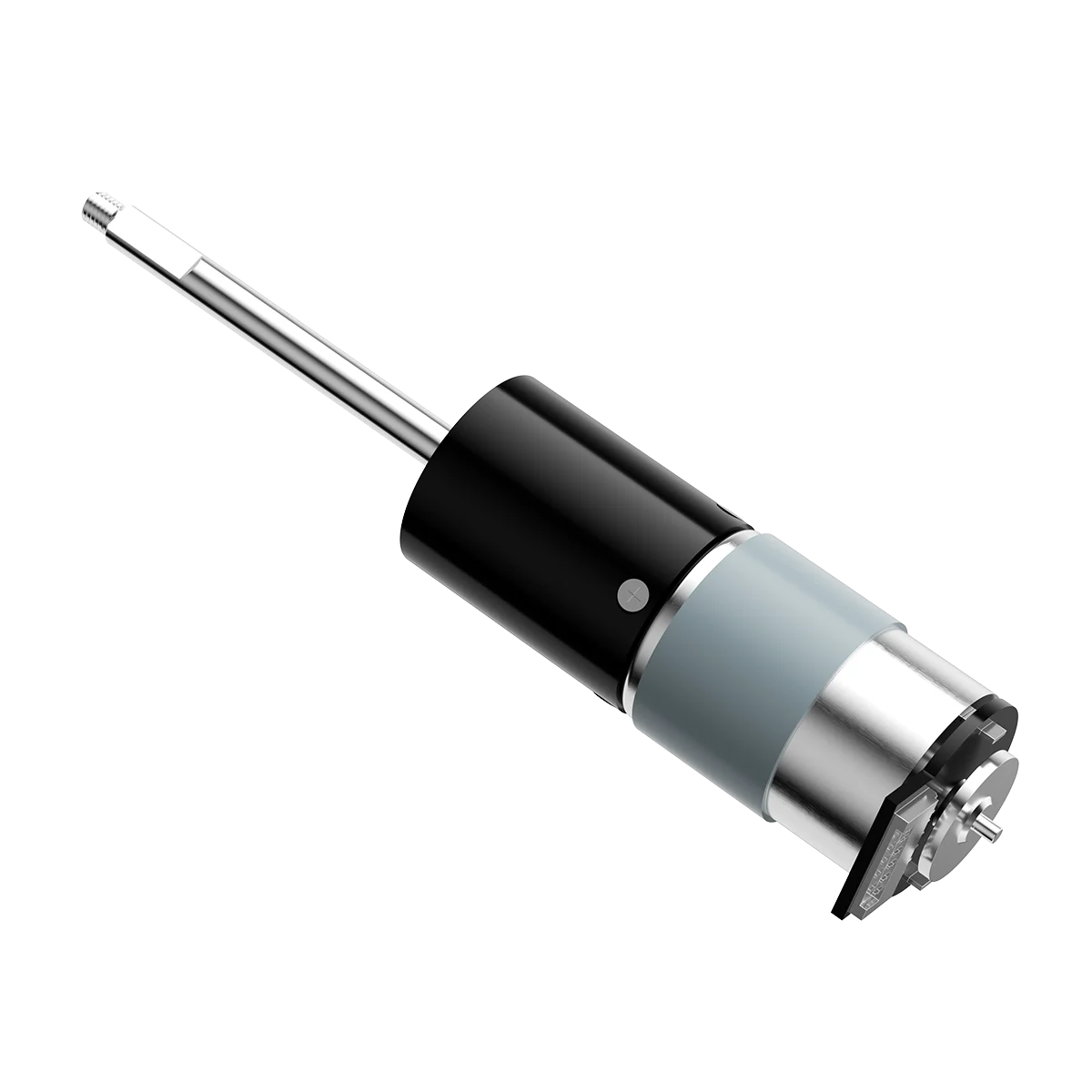

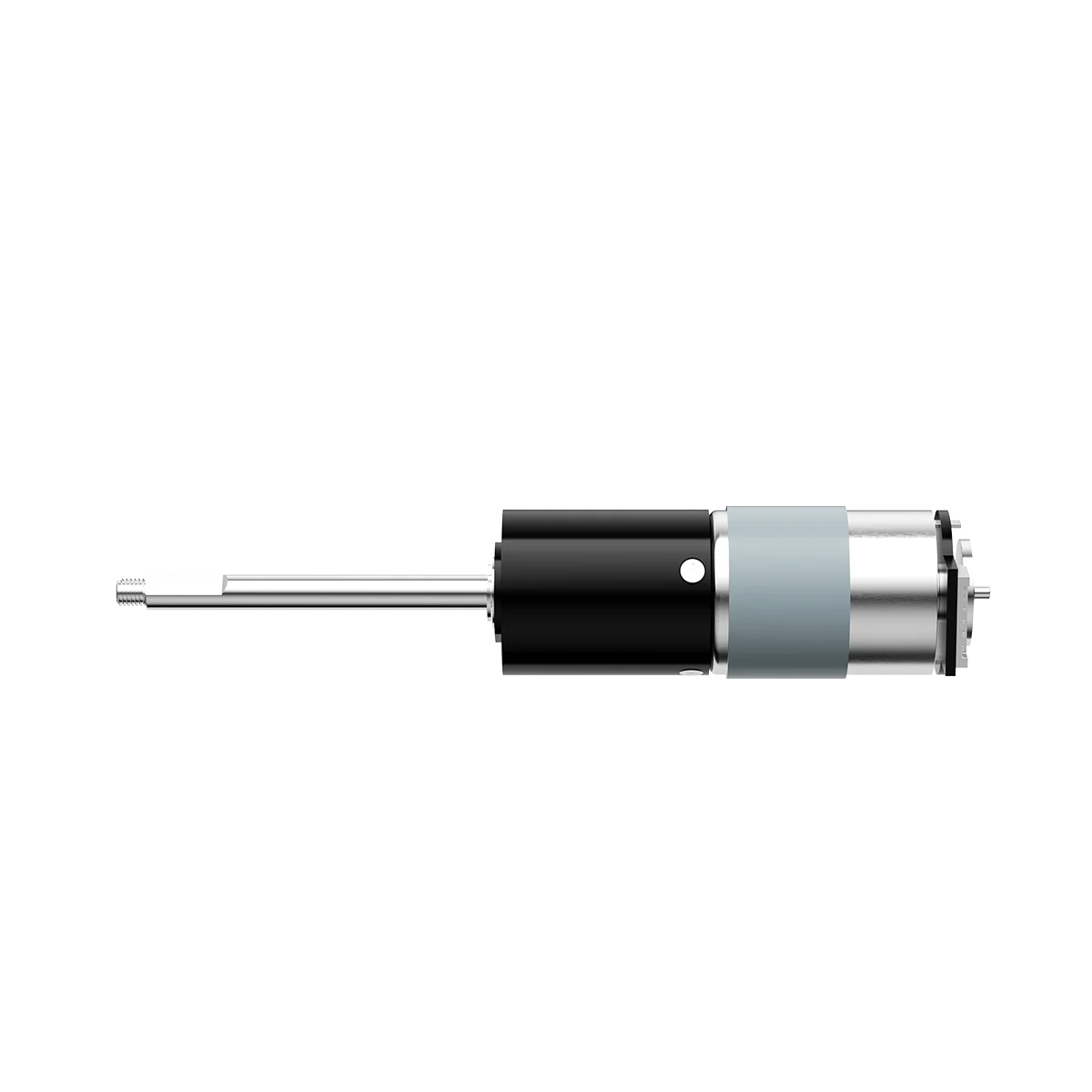

PG-P28 Powder Metallurgy Gear Motor
PG-P28 Powder Metallurgy Gear Motor is a 28 mm planetary gear motor engineered for high-load miniature drive applications. With up to 60 kgf·cm continuous torque and 90 kgf·cm momentary torque, it combines a compact metal housing, stainless steel output shaft and roller bearing support for stable power transmission.
- 90 kgf·cm Peak Load Capacity
- 28mm Integrated Drive Format
- Stainless Steel Output Shaft
- Robust Ball-Bearing Support
Parameter
| PG-P28 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 4,6 | 16, 24, 36 | 64, 96, 144, 216 | 256, 384, 576, 864, 1296 |
| Gear Length (mm) | 21.3 | 29.8 | 38.3 | 46.3 |
| Max. Allowable Continuous Torque (kgf·cm) | 7.5 | 30 | 50 | 60 |
| Max. Allowable Momentary Torque (kgf·cm) | 11 | 45 | 75 | 90 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 28 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Ball bearings | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
