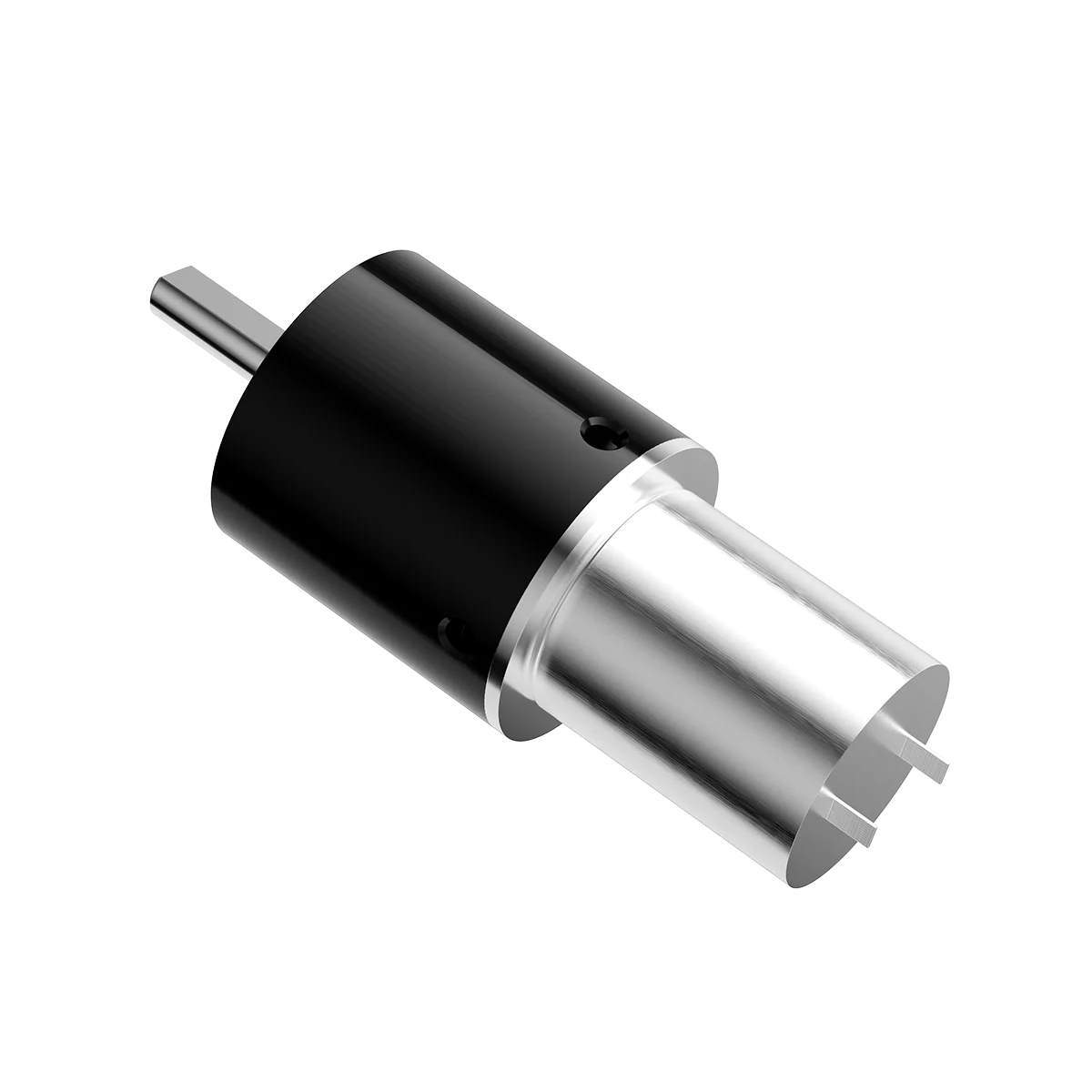

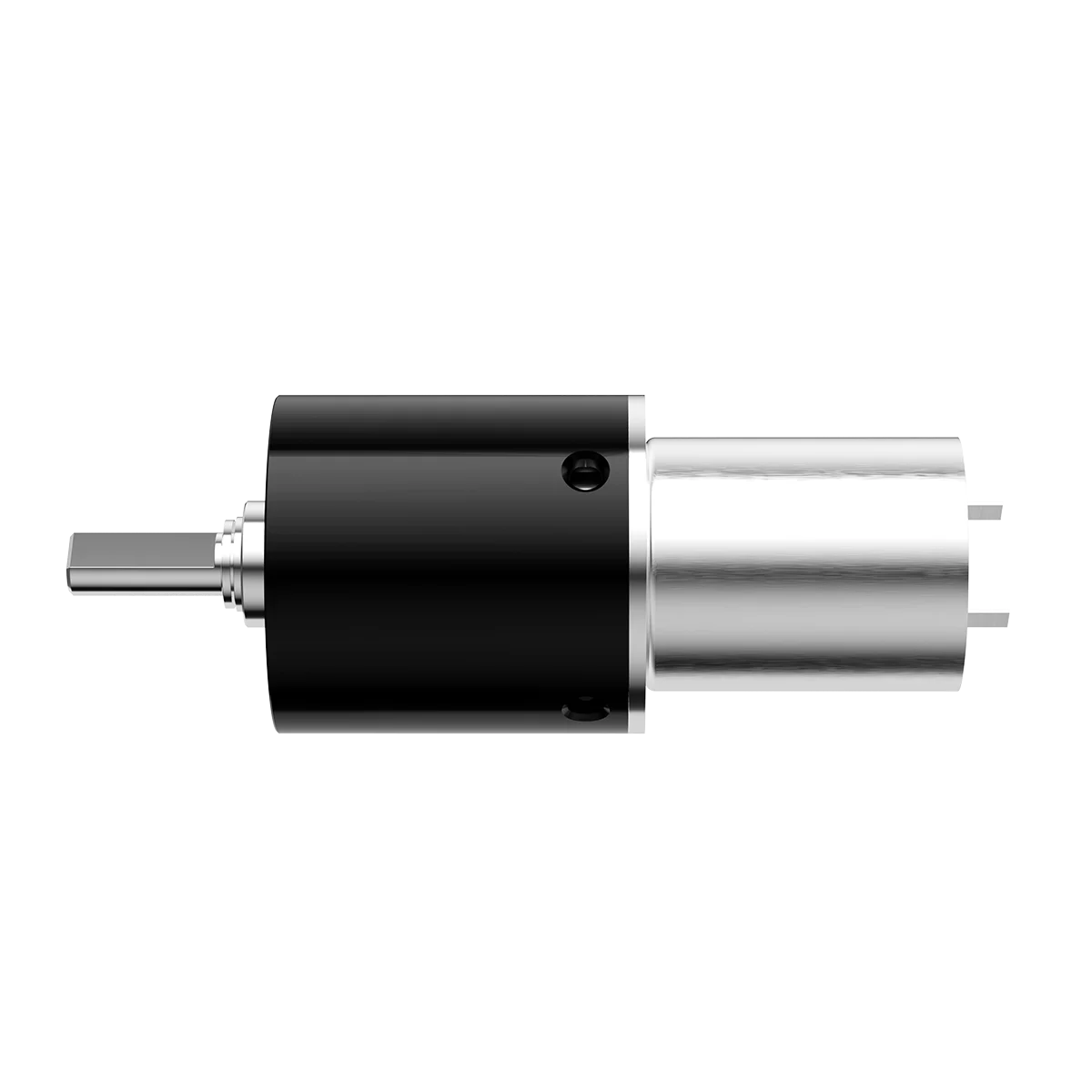

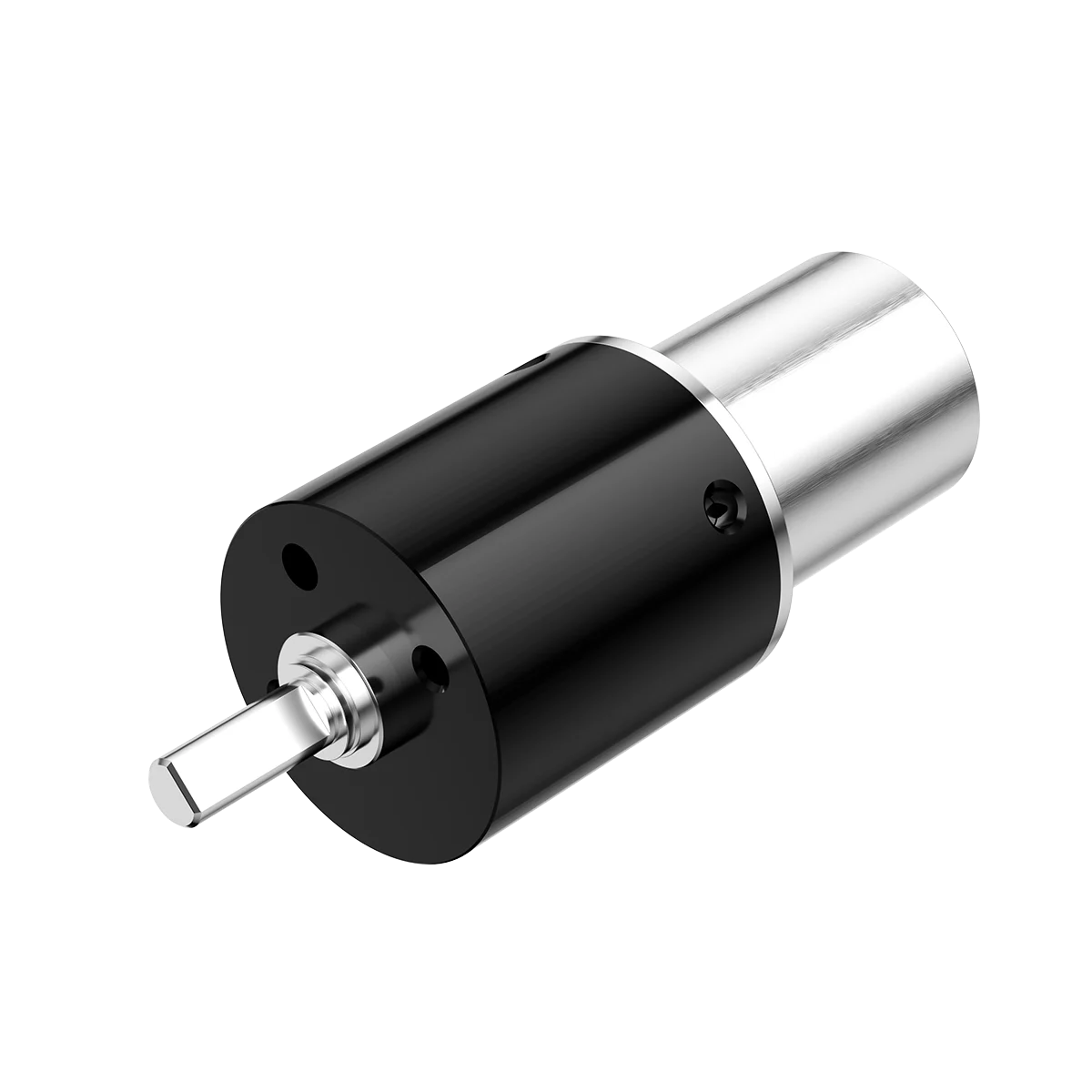

PG-P16 Powder Metallurgy Gear Motor
PG-P16 Powder Metallurgy Gear Motor is a compact 16 mm planetary transmission solution developed for miniature drive systems requiring a combination of torque capacity, compact installation and reliable mechanical transmission. With up to 15 kgf·cm allowable momentary torque and 1–4 stage configurations Number of Gears.
- 16mm Powder Metallurgy Gear Motor
- Up to 15 kgf·cm Momentary Torque
- Planetary Gear Structure
- 1–4 stage Number of Gears
Parameter
| PG-P16 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 4,6 | 16, 24, 36 | 64, 96, 144, 216 | 256, 384, 576, 864, 1296 |
| Gear Length (mm) | 11.5 | 14.8 | 18.1 | 21.4 |
| Max. Allowable Continuous Torque (kgf·cm) | 2 | 4 | 8 | 10 |
| Max. Allowable Momentary Torque (kgf·cm) | 3 | 5 | 12 | 15 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 16 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Oil-Impregnated Bearing | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
