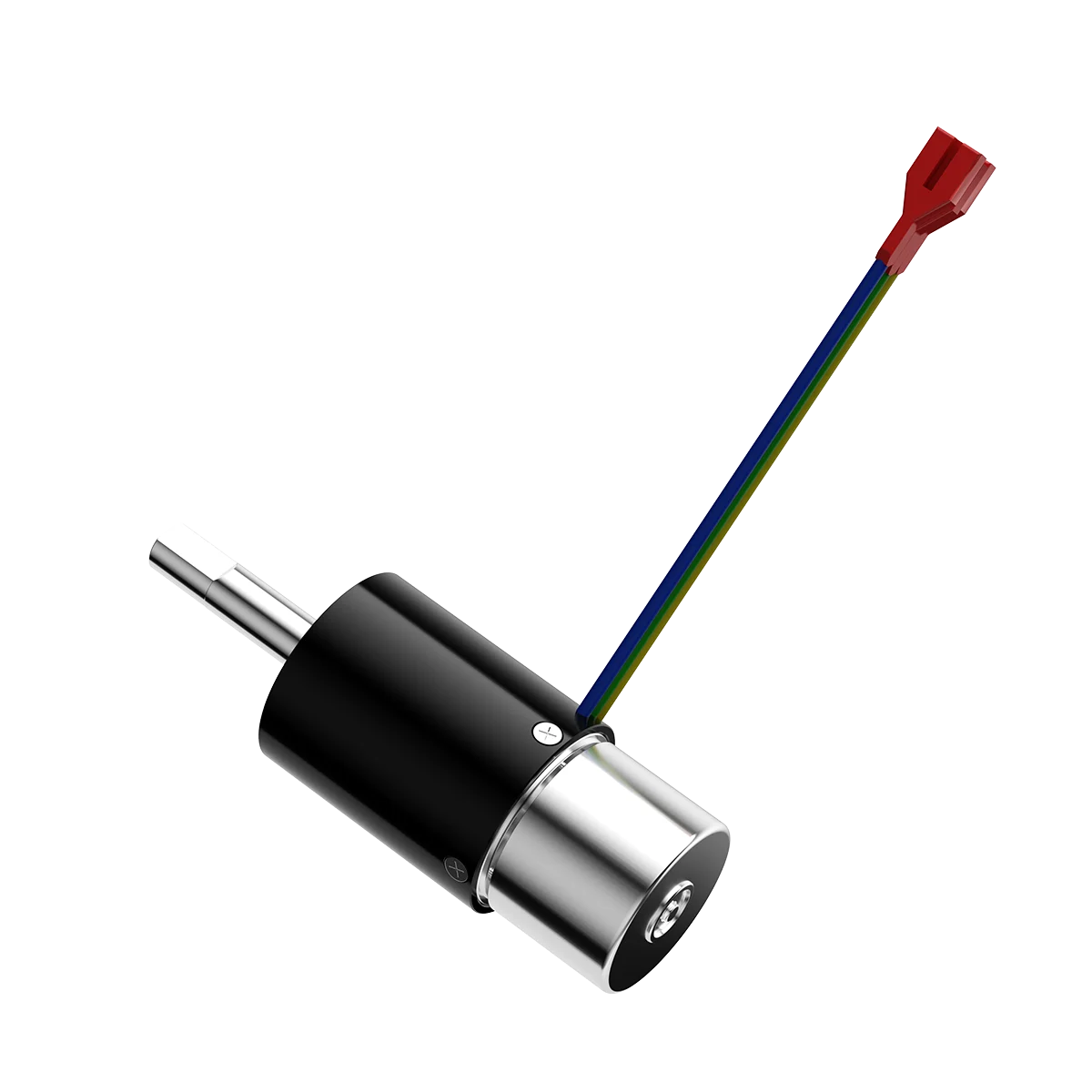

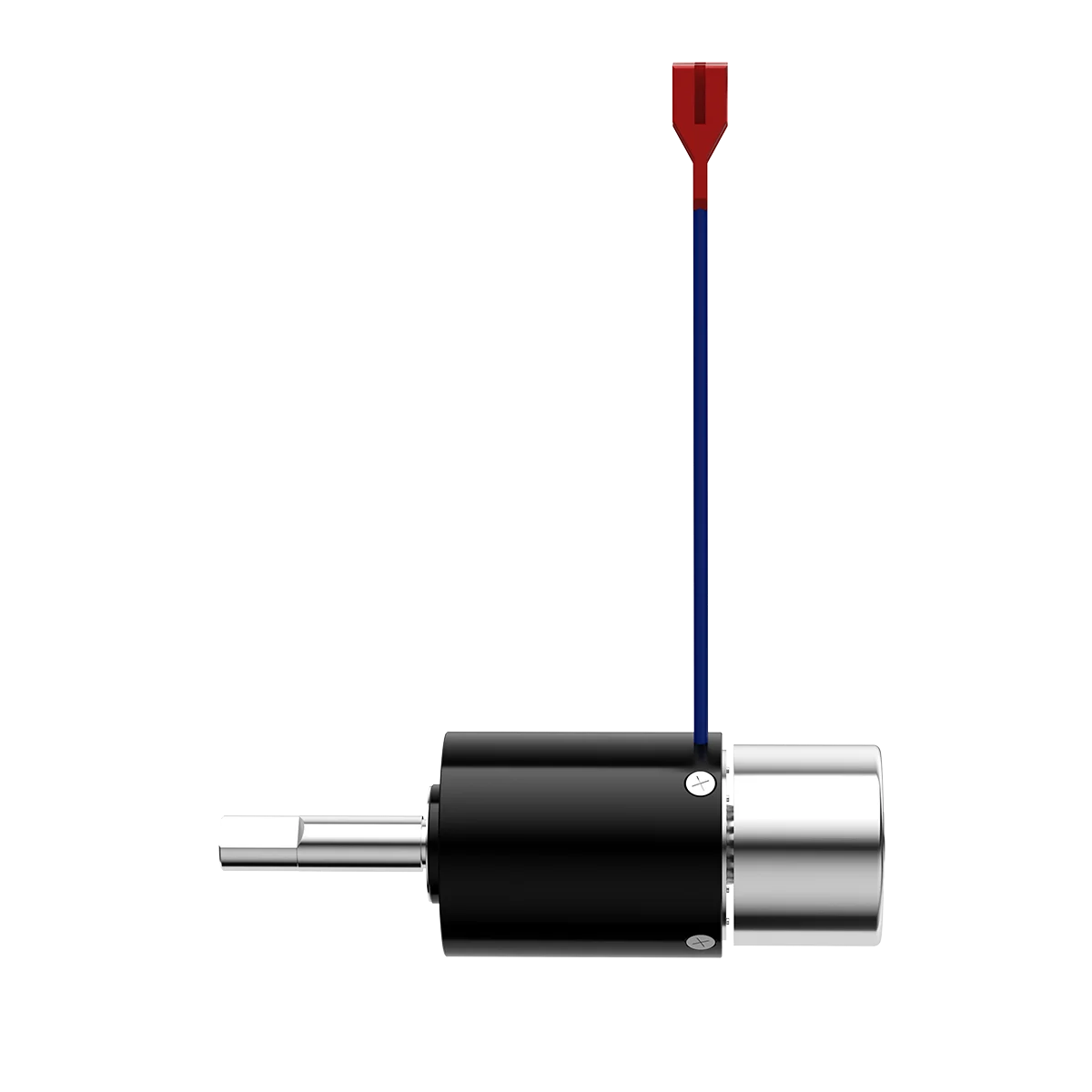

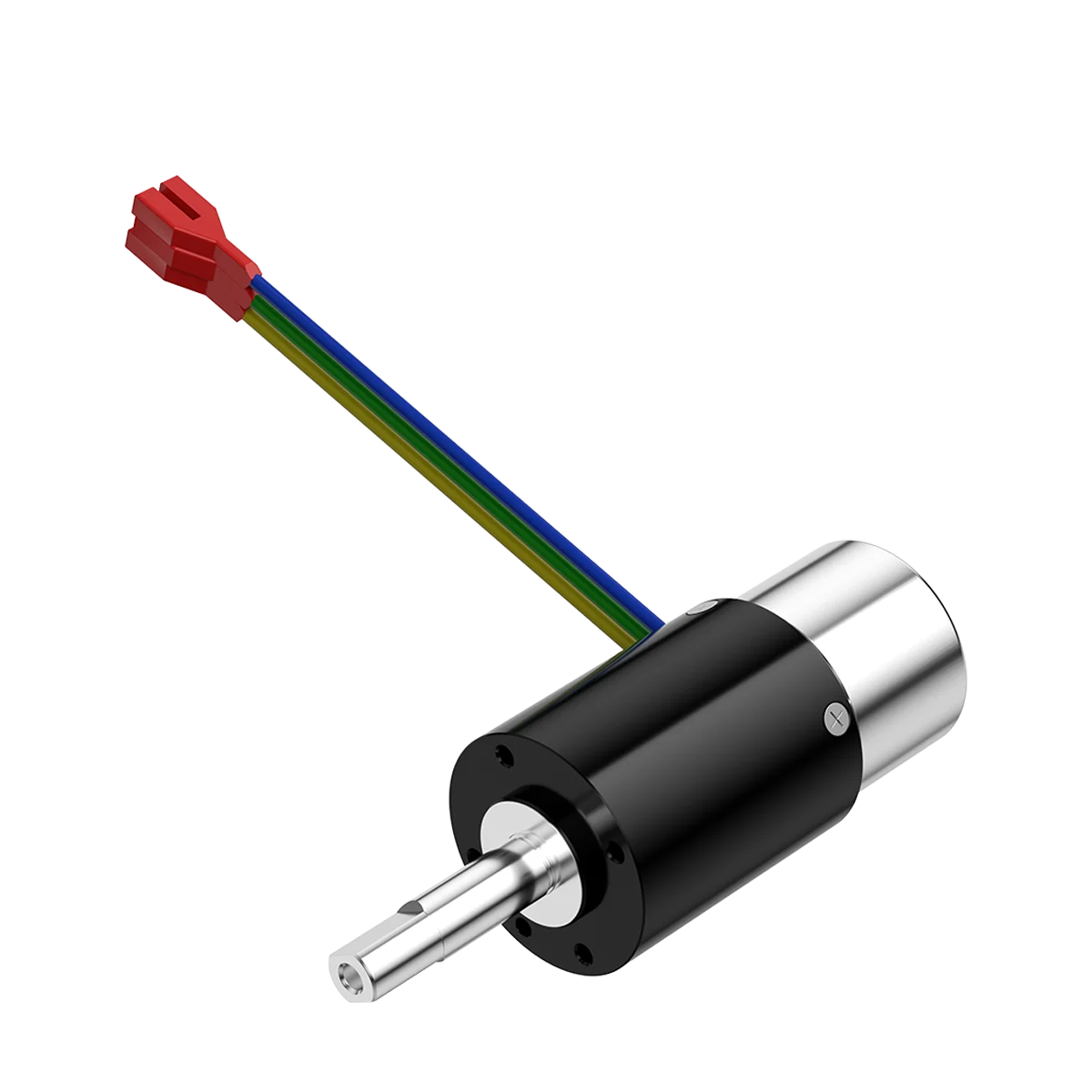

PG-P32 Powder Metallurgy Gear Motor
PG-P32 Powder Metallurgy Gear Motor is a 32 mm planetary gear motor developed for compact drive assemblies that require substantial torque output and dependable mechanical support. It delivers up to 80 kgf·cm continuous torque and 120 kgf·cm momentary torque, with a stainless steel output shaft and Ball-bearing support. The integrated motor-and-gearbox configuration makes it suitable for robotics, automation machinery and intelligent motion systems.
- 120 kgf·cm Momentary Torque Capacity
- 32mm Integrated Gear Motor Design
- Ball-Bearing Supported Output
- Stainless Steel Output Shaft
Parameter
| PG-P32 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 3.7, 5.2 | 13.7, 19.2, 26.9 | 50.9, 71.2, 99.5, 139.1 | 188.6, 263.7, 368.8, 515.6, 721 |
| Gear Length (mm) | 29.1 | 39.1 | 49.1 | 59.1 |
| Max. Allowable Continuous Torque (kgf·cm) | 7.5 | 40 | 70 | 80 |
| Max. Allowable Momentary Torque (kgf·cm) | 11 | 60 | 100 | 120 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 32 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Ball bearings | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
