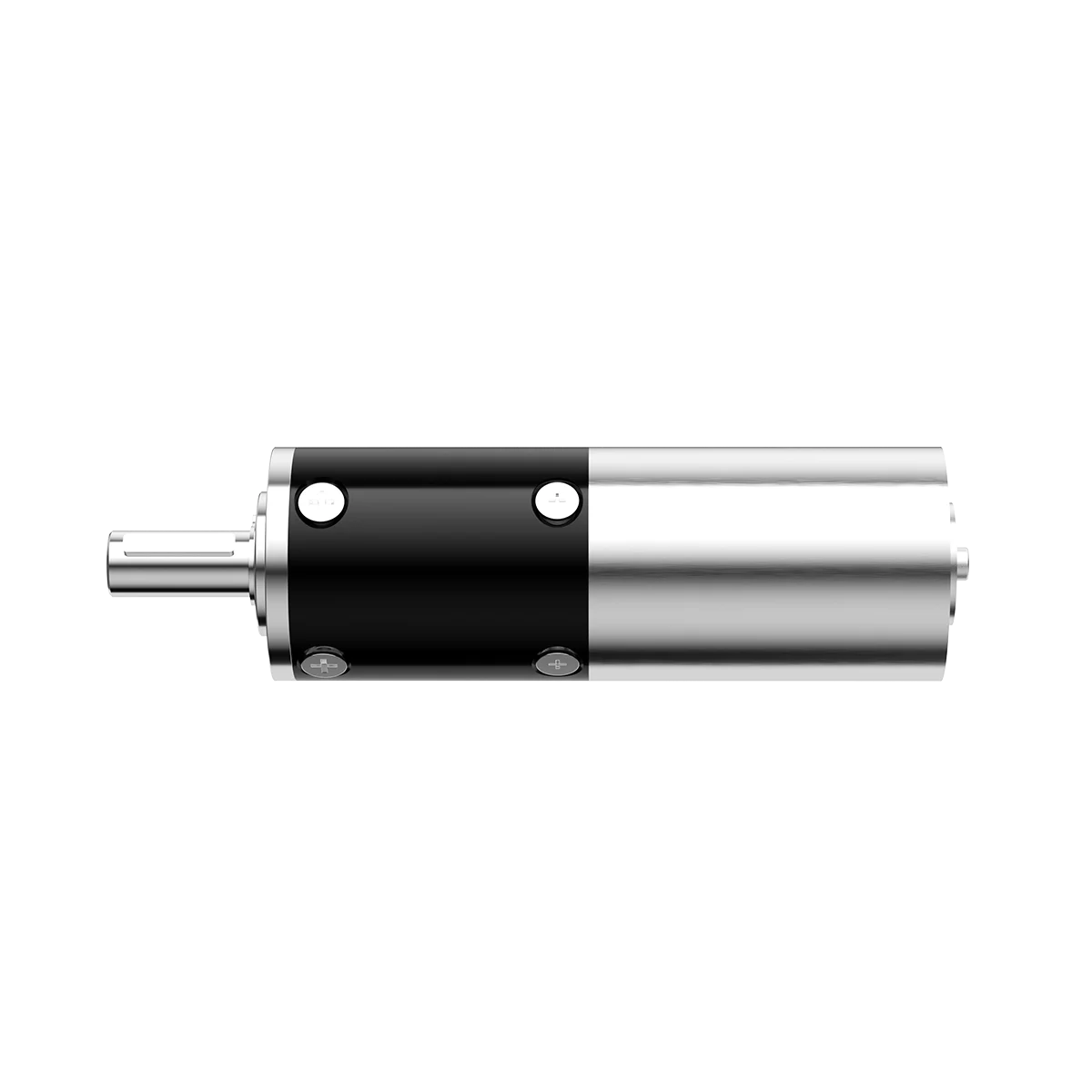

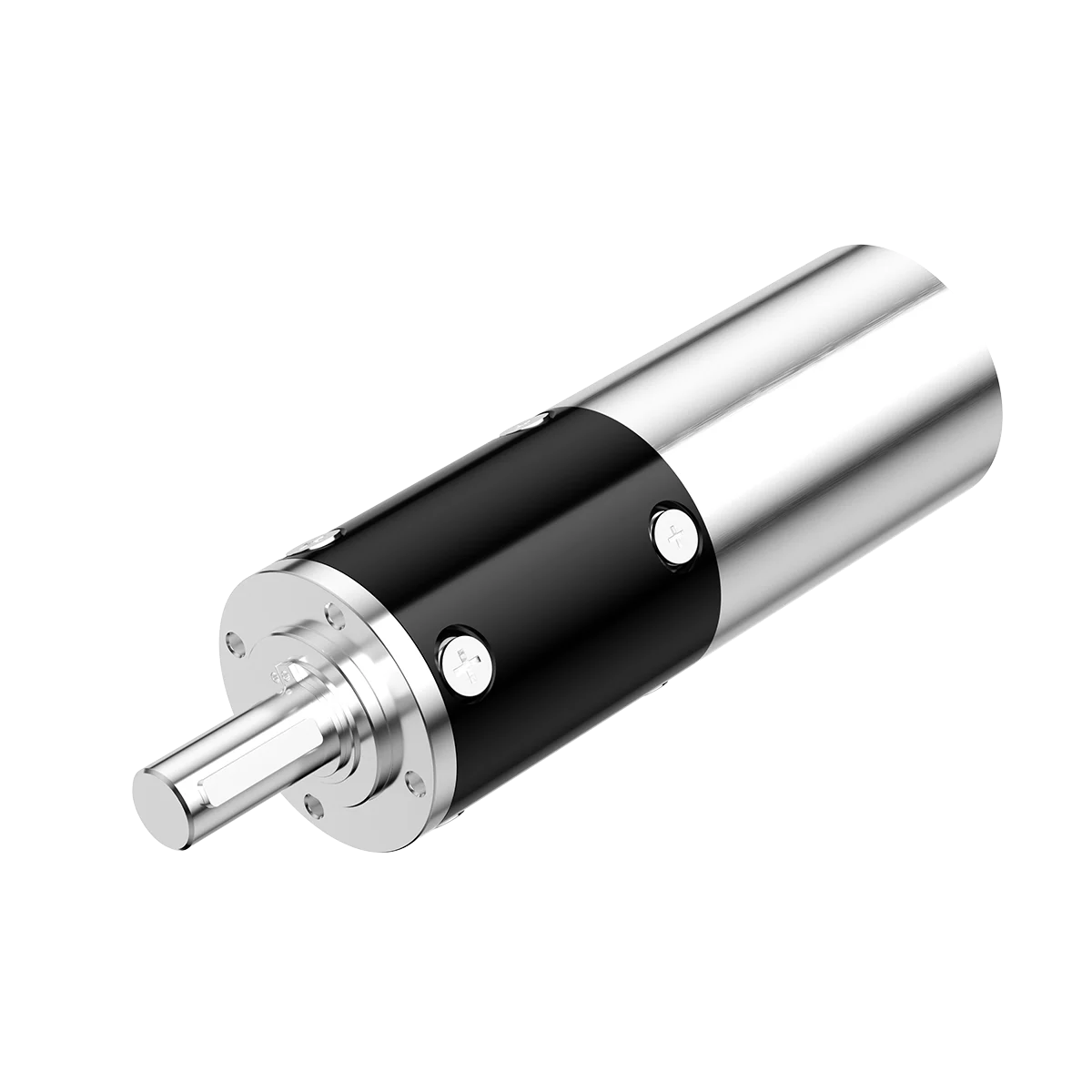

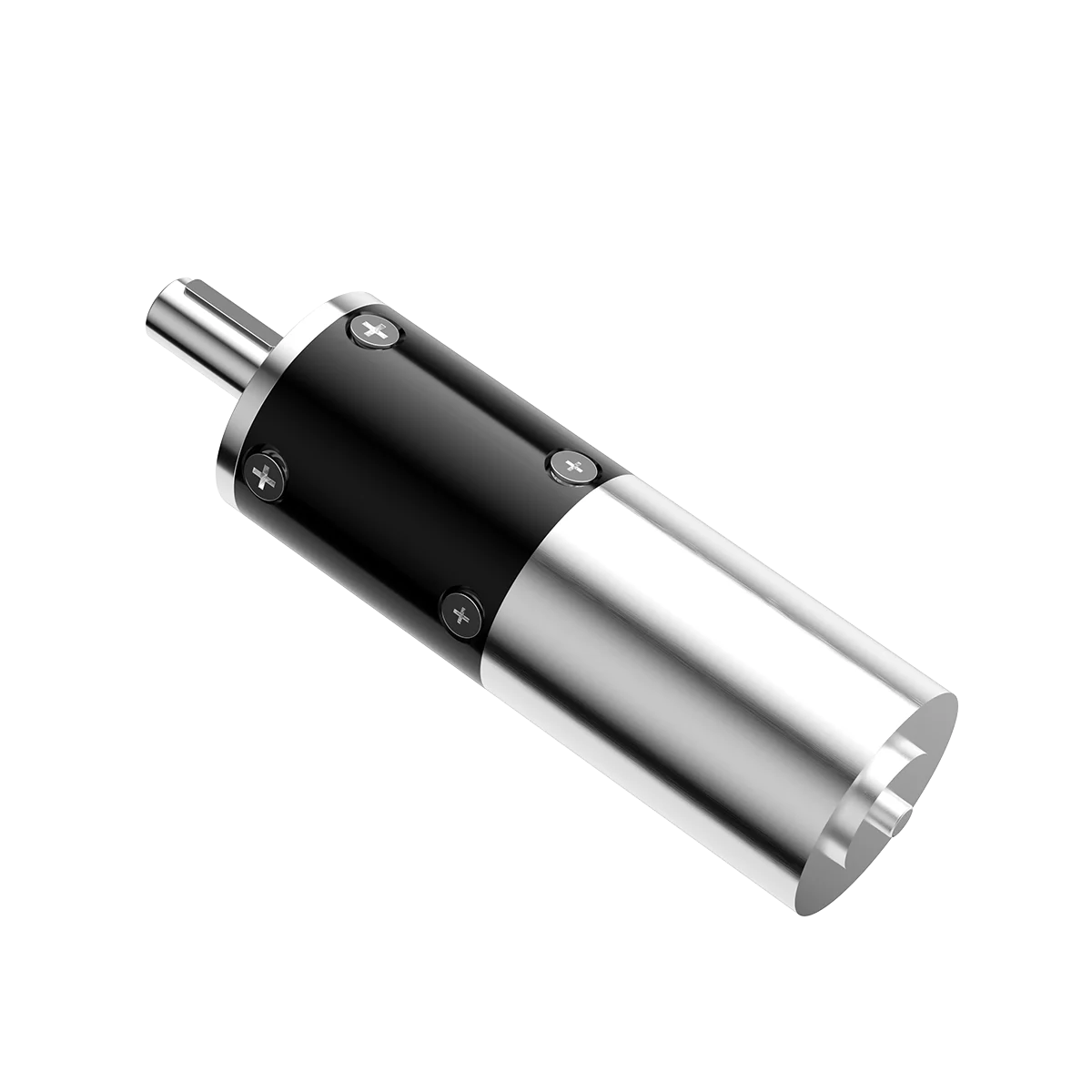

QJS 42mm All-Metal Planetary Gear Motor
QJS 42mm All-Metal Planetary Gear Motor is designed for drive systems that demand high torque output, structural stability and dependable transmission performance. With a 42 mm outer diameter, up to 180 kgf·cm momentary torque and 120 kgf·cm continuous torque.
- Up to 180 kgf·cm Momentary Torque
- 42mm High-Strength Drive Structure
- Ball Bearing for Output Stability
- -30°C to +100°C Operating Temperature
Parameter
| QJS 42mm | ||||
| Gear Stages | 1 | 2 | 3 | 4 |
| Reduction Ratio | 3.7, 5.2 | 13.7, 20.35,27 | 50, 71, 100, 140 | 187, 263, 370, 520 |
| Gear Length (mm) | 31.6 | 42.5 | 53.4 | 46.3 |
| Max. Allowable Continuous Torque (kgf·cm) | 10 | 50 | 100 | 120 |
| Max. Allowable Momentary Torque (kgf·cm) | 15 | 75 | 150 | 180 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 42 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Ball Bearing | |||
| Gear Material | Machined Metal Gear | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
