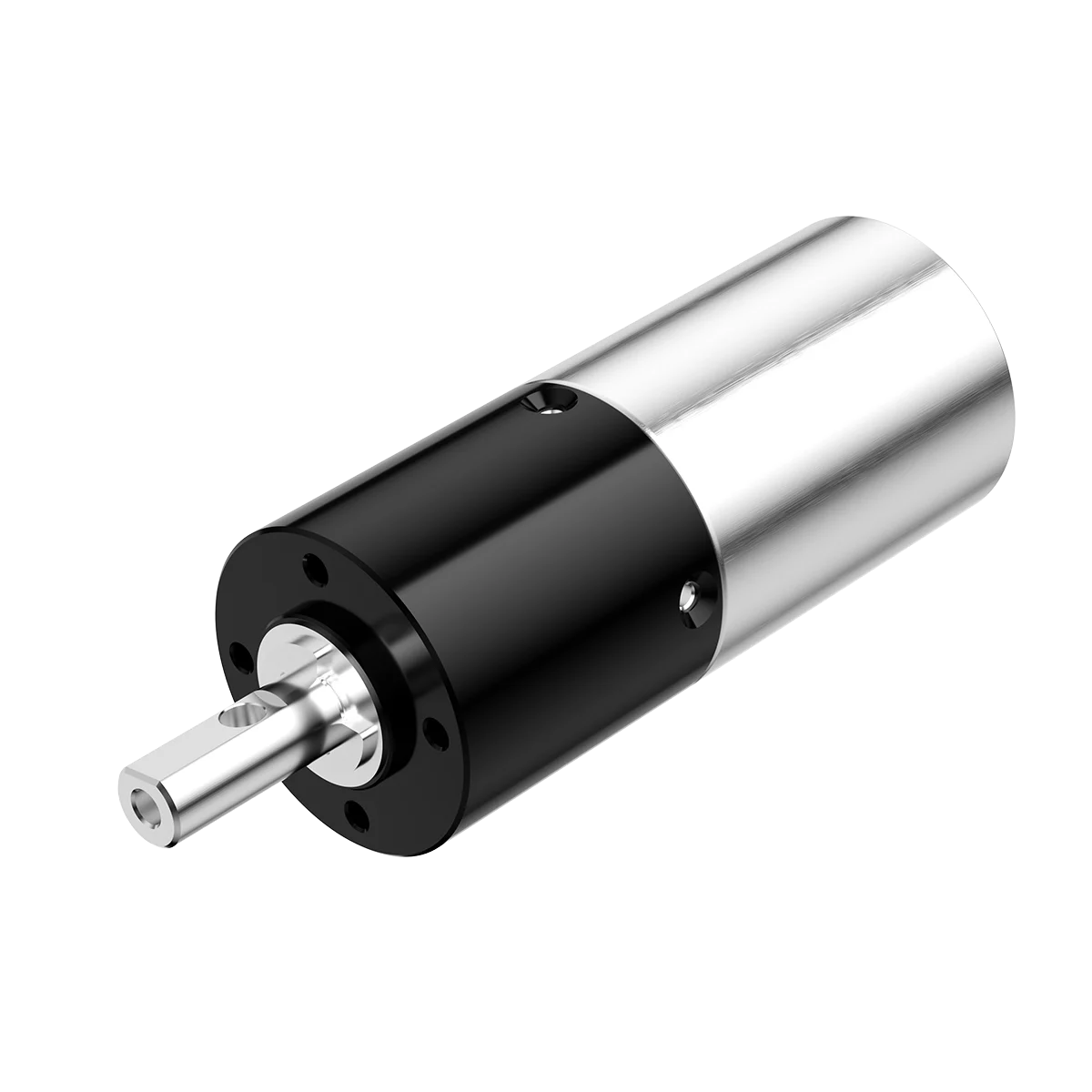

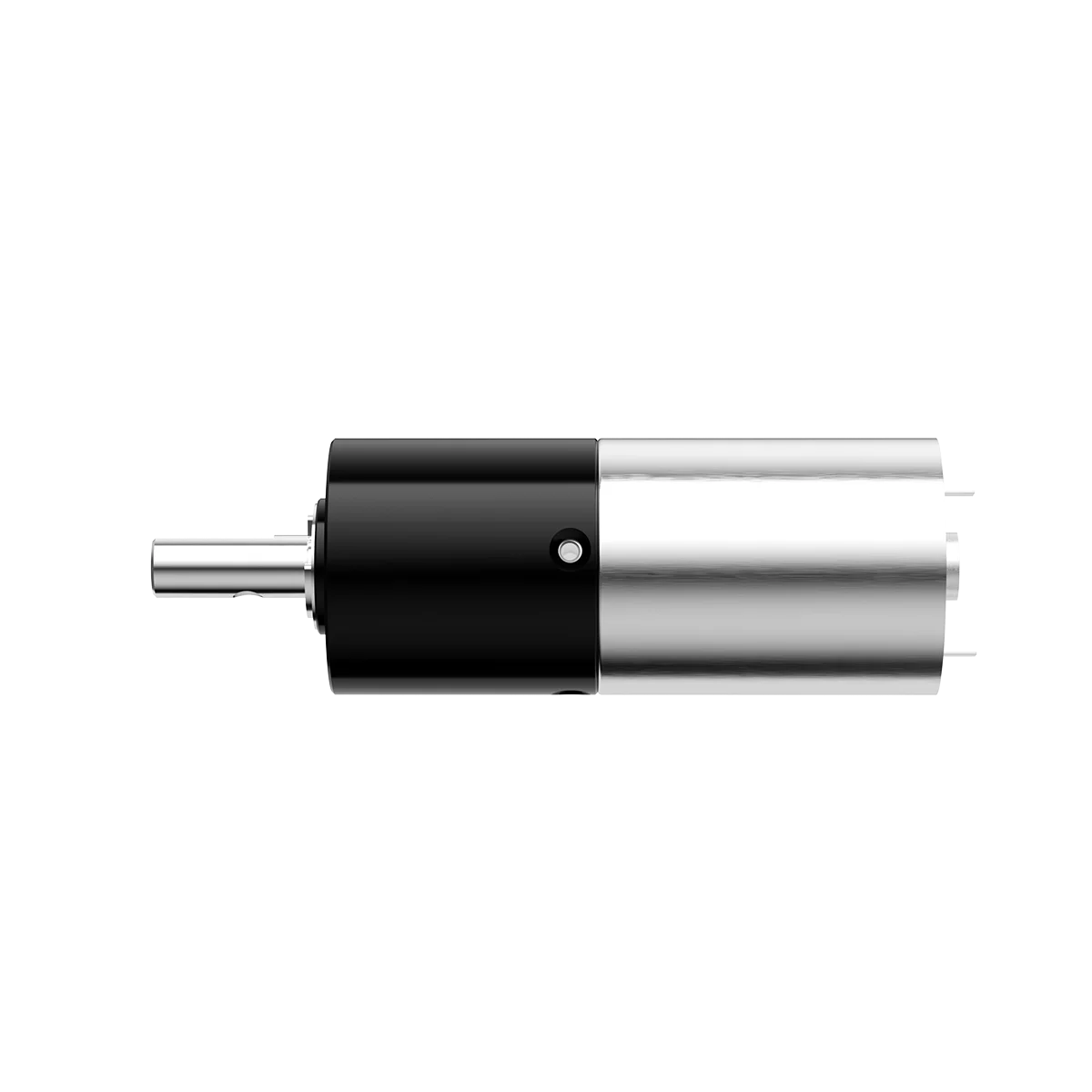

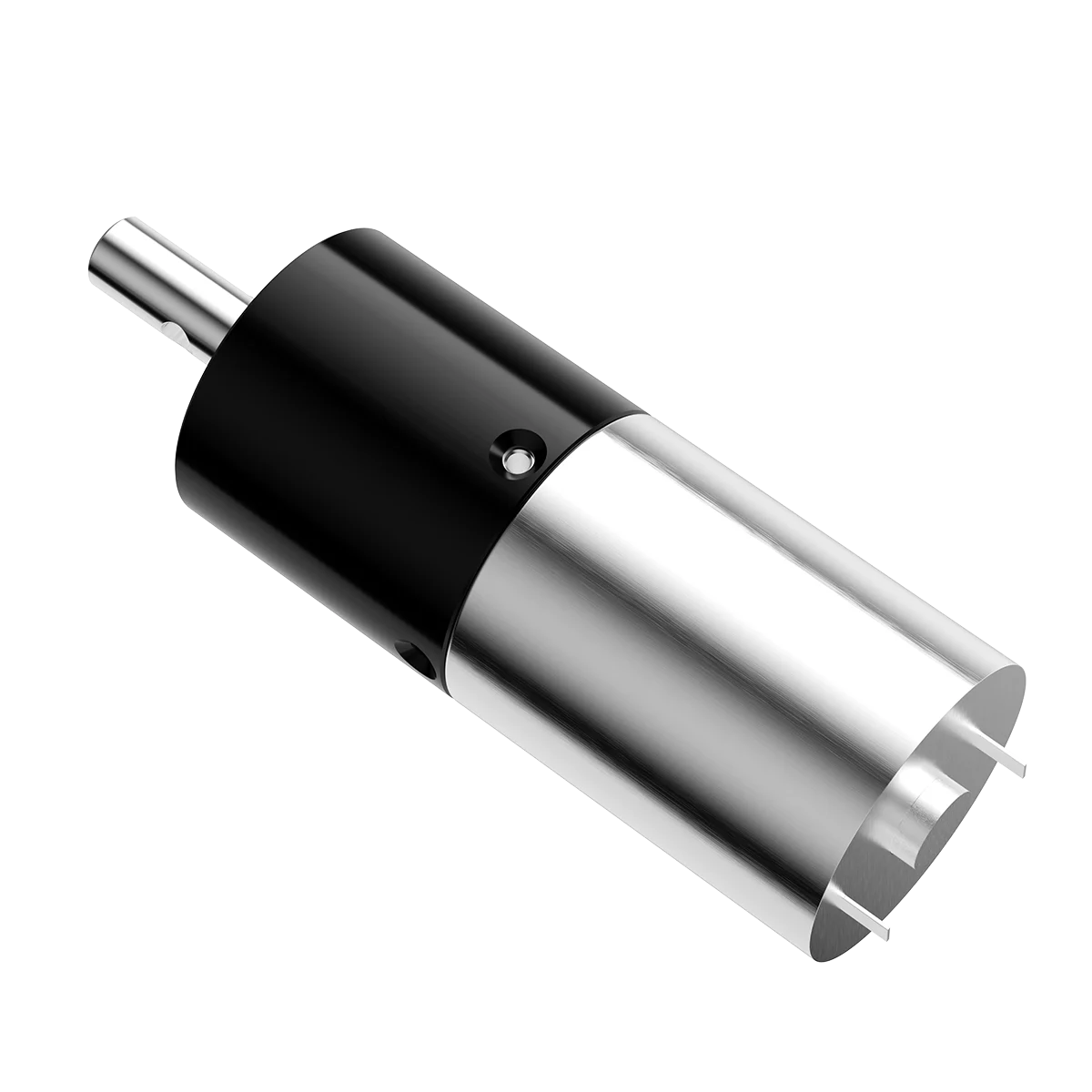

PG-P24 Powder Metallurgy Gear Motor
PG-P24 Powder Metallurgy Gear Motor is a 24 mm planetary gear motor. Delivering up to 33 kgf·cm allowable momentary torque, it combines powder metallurgy gearing with a metal housing and dual output-bearing, making it suitable for robotic module, smart robots etc.
- 24mm Compact Outer Diameter
- Up to 33 kgf·cm Momentary Torque
- Stainless Steel Output Shaft Material
- Dual Output Bearing type
Parameter
| PG-P24 | ||||
|---|---|---|---|---|
| Gear Stages | 1 | 2 | 3 | 4 |
| Gear Ratio | 4, 4.75, 6 | 16, 19, 22.6, 24, 28.5, 36 | 64, 76, 90.3, 96, 107.2, 114
144, 135.4, 171, 216 |
256, 304, 361, 384, 428.7, 456, 509.1, 541.5
576, 643, 684, 812.3, 864, 1026, 1296 |
| Gear Length (mm) | 19.1 | 25 | 32 | 39 |
| Max. Allowable Continuous Torque (kgf·cm) | 4 | 6.5 | 17.5 | 22 |
| Max. Allowable Momentary Torque (kgf·cm) | 6 | 9.5 | 26 | 33 |
| Efficiency (%) | 90 | 81 | 73 | 65 |
| Motor Length | Depends on the specified motor | |||
| Outer Diameter | 24 mm | |||
| Gearbox Type | Planetary Structure | |||
| Output Shaft Material | Stainless Steel | |||
| Output Shaft Bearing Type | Oil-Impregnated Bearing / Ball bearings | |||
| Gear Material | Iron-based powder Metallurgy, Plastic, Metal | |||
| Case Material | Metal | |||
| Operating Humidity | 20%–85% RH | |||
| Operating Temperature | -30°C–+100°C | |||
| Customization available (design & manufacturing) | ||||
